Button Snap Tester

Applications

Snap Button Tester is used to determine the holding or breaking strength of prong ring attached snap fasteners onto garments, prevent the buttons divorce from the clothing,which case the dangerous if babyswallowing the buttons. So that every button and fixed parts on the clothing are required the detection of the button pull test.

Standards

Complete standard package including Individual Items 1-10.

Specifications

1. Imada mechanical force gauge FB-50K

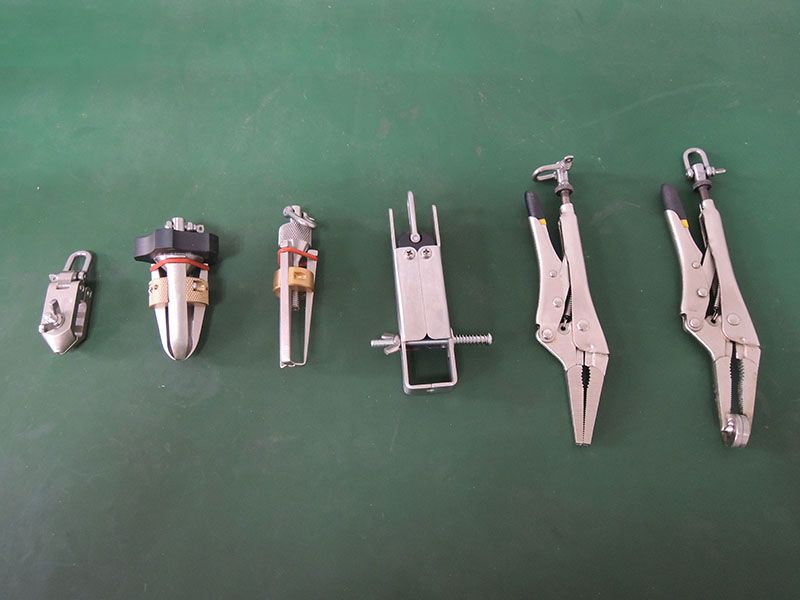

2.Upper Universal Grip for female part of snap

3.Upper Stud Clamp for male part of snap

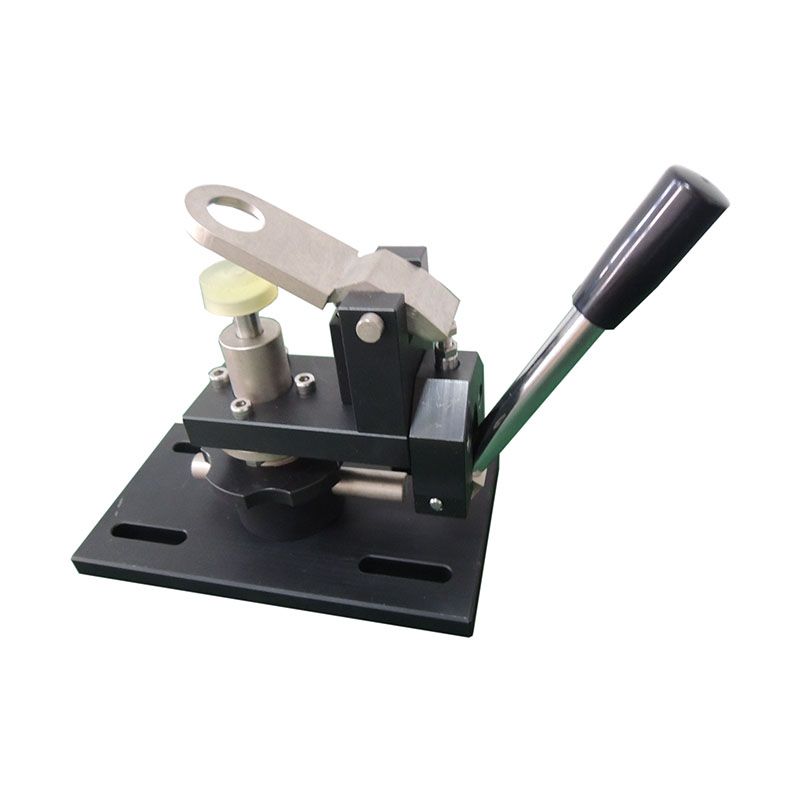

4.Lower Fabric Clamp

5.Upper three pronged grip

6.Long Nose Vise Grip

7.Mechanical Stand for Imada Pull Gauge

8.Upper Three Pronged Grip

9.Upper Grasp Button Grip

10.Goggles

Technical parameters

How do you do a button pull test?

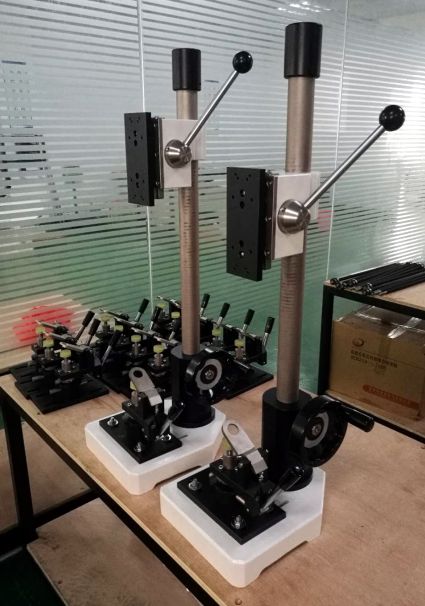

The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp and by turning the Top Flywheel an operator can apply a specific force and the holding force. The breaking strength can be recorded. A pull test is mandatory for any type of garment product use button.

What is pull tester?

Pull testers are more commonly known as universal testing machines. This equipment can be used to perform a wide variety of mechanical tests by pushing in compression or pulling in tension. Pull testers can be used universally for any tension and compression based quasi-static mechanical test.
