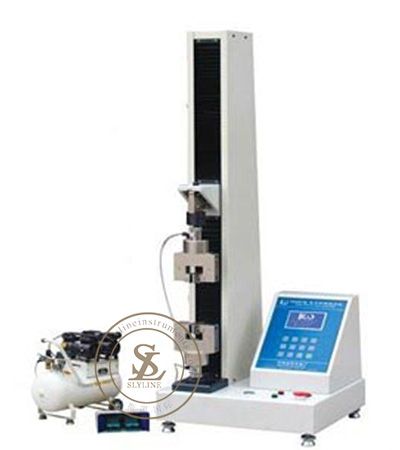

  • SL-F38 Tensile Strength Testing Machine

  • detailed description
  • Tensile Strength Tester


    Tensile testing machines  is applied to textiles, dyeing and garment industry to test the breaking strength and others.

    Product Information

    It is applied to textiles, dyeing and garment industry to test the breaking strength (including strip method and grab method), extension rate at break ,tearing strength single-blade, double-blade, trapezia),billiard bursting strength and elastic material’s repeat elongation(including elasticity deformation ratio, recovery ratio and plasticity deformation),constant elongation, constant load, cloth commissure slip-off extent, suture slippage, knit goods  armpit joint strength, sewing thread and single yarn strength. This machine can also be used for the tensile tests such as zipper, metal, paper, non-woven fabrics, linear materials and leather.


    Breaking strength (sample method)  ISO13934.1, ASTM D5035
    (Grab method)  ISO13934.2 ASTM D5034

    Tear strength (tongue-shaped tear) ISO13937.2 ASTM D2261

    Technical Parameters
     Measuring range  1-100% full scale
     Model     -50    -100    -300
     Range   500N    1000N    3000N
     Test Accuracy   ≤±0.1%F.S
     Drawing speed    0.1~1000mm/min(Arbitrary)
     Regen Rate    ~1000mm/min (Arbitrary)
     Sampling frequency more than   2000 times/s
     Elongation Resolution  ≤0.01mm
     Effective stroke  800mm
     External Dimensions  500×460×1350mm
     Power Supply  AC220V±10%   50Hz
     Weight  125kg


    How do you test tensile strength?

    The basic idea of a tensile test is to place a sample of a material between two fixtures called "grips" which clamp the material. The material has known dimensions, like length and cross-sectional area. We then begin to apply weight to the material gripped at one end while the other end is fixed.


    What is a tensile strength testing machine?

    A tensile tester, also known as a pull tester or universal testing machine (UTM), is an electromechanical test system that applies a tensile (pull) force to a material to determine the tensile strength and deformation behavior until break.
