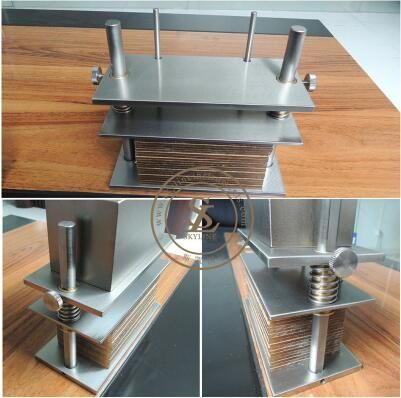

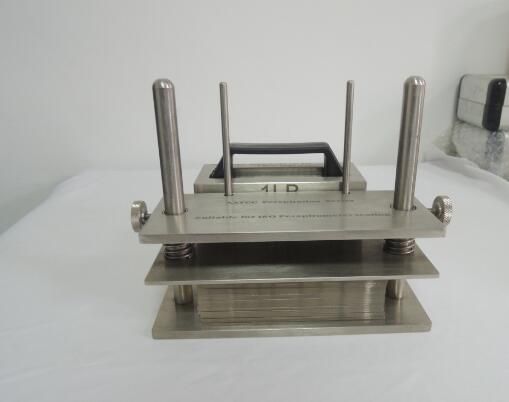

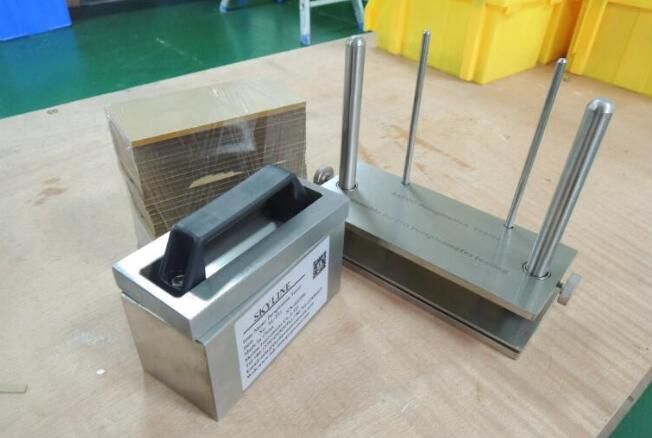

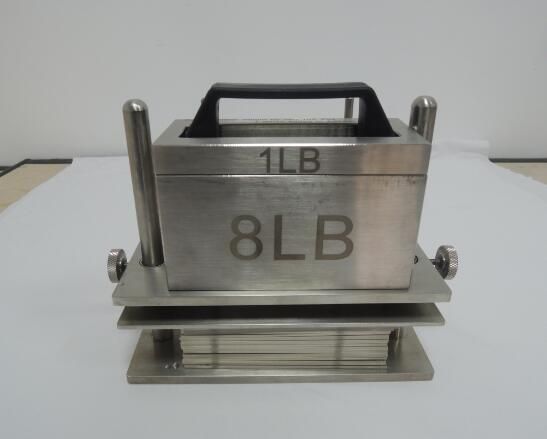

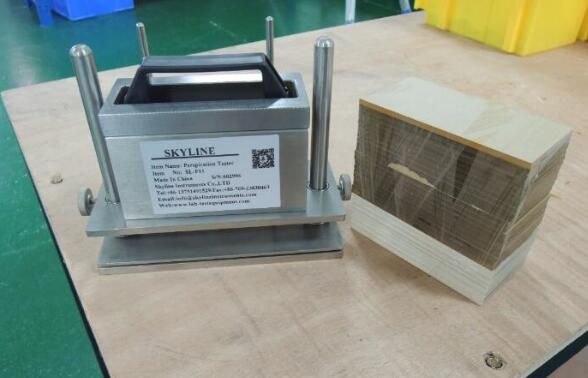

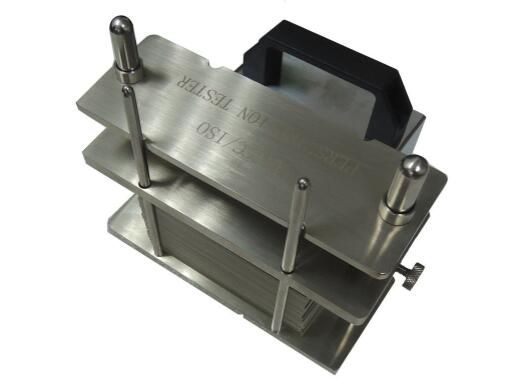

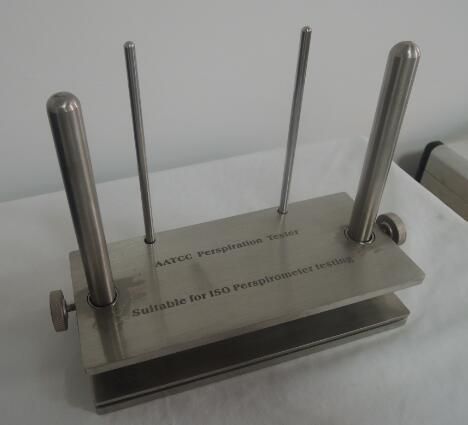

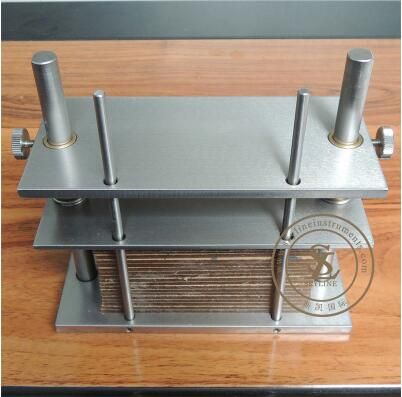

  • SL-F11 Perspirometer

    SL-F11 Perspirometer

    SL-F11 Perspirometer

    SL-F11 Perspirometer

    SL-F11 Perspirometer

    SL-F11 Perspirometer

    SL-F11 Perspirometer

    SL-F11 Perspirometer

  • detailed description
  • Textile Instruments Perspiration Color Fastness Test ISO 105 Perspirometer



    Product information

     Perspiration Tester to determine colour fastness test to water, sea water, perspiration fastness in textiles and sublimation during storage. Perspiration tester consists of 2 stainless steel frame with 21 acrylic separator plates to hold 20 samples. Thus the both ISO/AATCC test methods can be done in one time. 20 plastic basins are equipped for pre-treatment of samples.

    A precise oven is required.



    Color Fastness of dyed or printed fabrics against perspiration is determined by exposing the fabric sample to the action of both alkaline and acidic reagents while in contact with undyed adjacent fabrics is placed between plastic plates under a fixed load inside an oven maintained at 370 centigrade. The apparatus used for this test is called the Perspirometer.
    consists of a number of acrylic plates and which can be kept in suitable loading frame. The loading frame consists of two steel plates between which the acrylic plates placed. The test specimen are stitched between suitable white cloth pieces and dipped in either alkaline or acidic test solutions.



    Perspirometer Included Accessories

     AATCC Test Kit

    AATCC weight with other parts in total 4.54kg(10lb)

    Acrylic Plates (Pack of 21)



    ISO Test Kit

     AATCC weight with ISO extra weight and other parts in total 5kg(11lb)

    Acrylic Plates (Pack of 21)



    Perspirometer standards

    Perspiration  AATCC 15 , EN ISO 105 E04 , DIN 54020 , JIS L0848 , BS 1006 E04
     Water  AATCC 107, EN ISO 105 E01 , DIN 54006 , DIN54005 , JIS L0846 ,BS 1006 E01
     Sea water  AATCC 106 , EN ISO 105 E02 , DIN 54007 , JIS L0847 , BS 1006 E02
     Weight 7 Kg
     Dimensions

     210x100x160mm (L x W x H)
