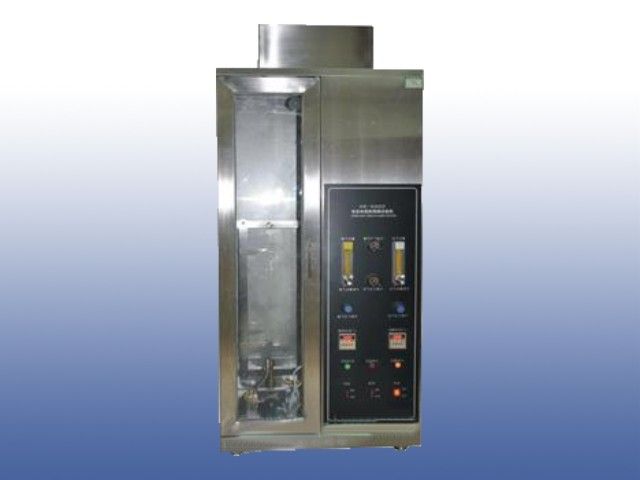

SL-7603B Single Cable Vertical Flaming Tester
Standards: According to GB/T 18380.11-2008, IEC60332-1-1:2004, GB/T 18380.12-2008, IEC60332-1-2:2004, GB/T 18380.13-2008, IEC60332-1-3:2004, EN50265-1, EN50265-2-1
Scope: Applies to check thesingle insulation wire and cable vertical spreading test which total section area less than 0.5mm2
Main parameters:
Vertical burning chamber |
W300xH1200xD450mm |
Gas |
Use high purity propane gas or liquefied petroleum gas (provide by user-self) |
Specimen length |
600±25mm |
Area of specimen |
Total section area less than 0.5mm2 |
Testing temperature |
This device is located in a stuffiness room and the temperature keeping the 23±10℃ for testing |
Burning time |
continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen |
Control function |
Switch can choose to be manual or automatically according to the actual needed |
Gas flow range |
0.1-1L/min |
Area flow range |
0.1-1m3/h |
Burner |
500W for standards power, 125±25mm for total height of the flame |
