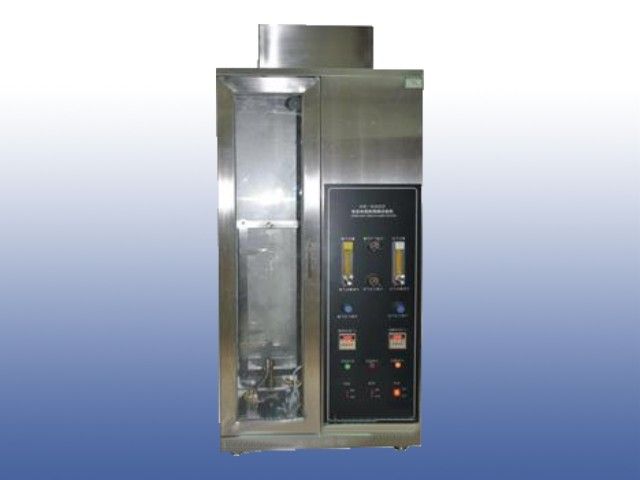

SL-7603A Single Cable Vertical Flaming Tester
Standards: According to GB/T 18380.11-2008, IEC60332-1-1:2004, GB/T 18380.12-2008, IEC60332-1-2:2004, GB/T 18380.13-2008, IEC60332-1-3:2004, EN50265-1, EN50265-2-1
Scope: Applies to check the section area more than 0.5mm2 of single insulation wire and cable vertical flame propagation testing.
Main parameters:
Burning chamber |
W300xH1200xD450mm |
Gas |
Use high purity propane gas or liquefied petroleum gas (provide by user-self) |
Specimen length |
600±25mm |
Area of specimen |
the section area more than 0.5mm2 |
Testing temperature |
This device is located in a stuffiness room and the temperature keeping the 23±10℃ for testing |
Burning time |
continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen |
Control function |
Switch can choose to be manual or automatically according to the actual needed |
Gas flow range |
0.1-1L/min |
Area flow range |
0.1-1m3/h |
Burning blowtorch |
1KW for standards power, 50~60mm for height of blue luminous cone, 170~190mm for total height of flame, according to GB/T5169.14-2007, IEC60695-11-2:2003 standard requires. |
