  • Fully Automatic Thickness Gauge

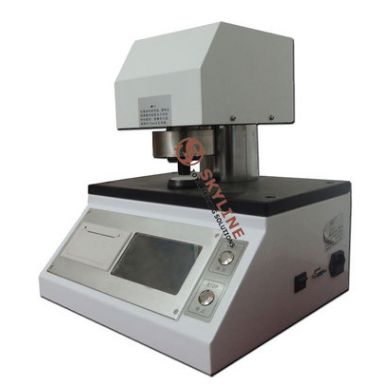

    Fully Automatic Thickness Gauge

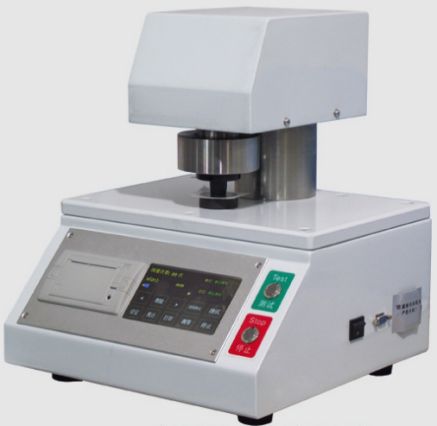

    Fully Automatic Thickness Gauge

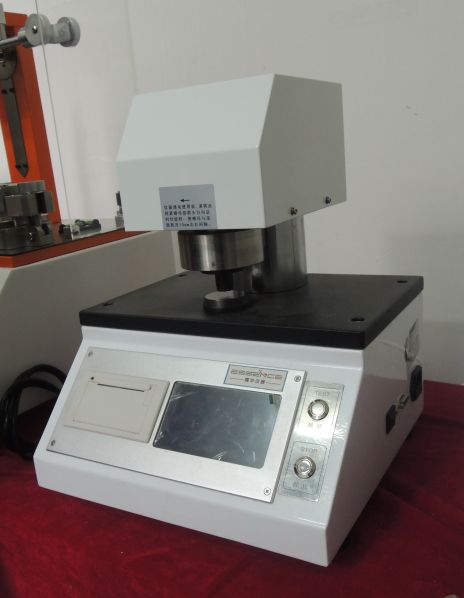

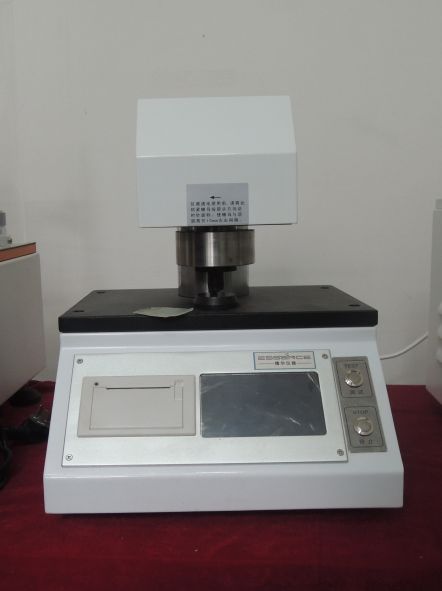

    Fully Automatic Thickness Gauge

  • detailed description
  • Fully Automatic Thickness Gauge Paper Thickness Gauge Computer Paper Thickness Tester



    Product usage overview
    The instrument is an electromechanical integration product, computer measuring and controlling paper thickness meter
    Using high-precision displacement sensor, the instrument has the functions of test, conversion, display, memory, printing and data processing.
    Ideal test equipment for industries and departments such as paper, packaging, film research and product quality supervision and inspection.



    Technical parameter

     Power source  AC220V±10% 2A 50Hz
     Display value error  ±0.3%
     Indication value variability  ≤0.3%
     Measuring range  ≤5mm
     Resolution  0.001mm
     Measurement parallelism  ≤0.002mm
     Contact area  paper (200±5)mm2; film (50±1)mm2
     Contact pressure  (100±10) kPa; (can be changed); film (17.5±1) kPa (other pressures can be customized)
     Falling speed  ≤0.5-6mm/s; (can be changed)
     Beating printer  modular integrated thermal printer
     Weight  about 25kg
