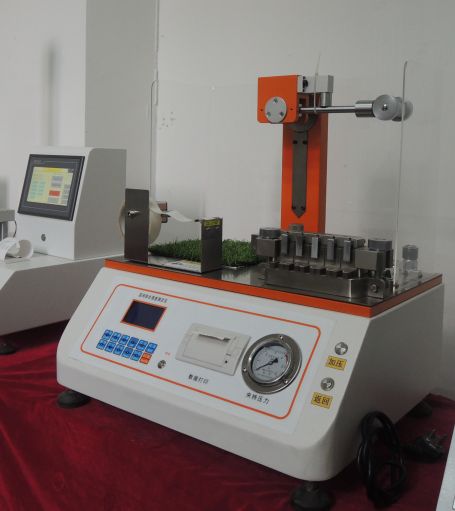

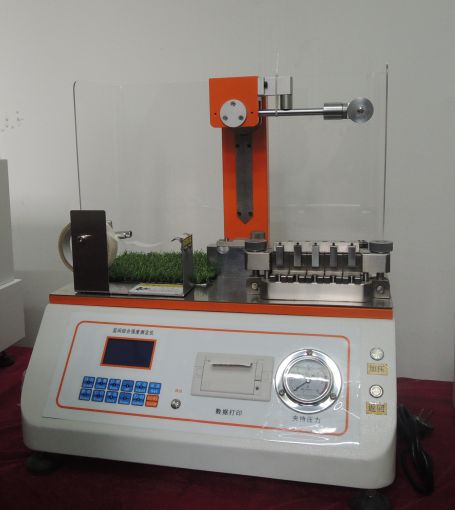

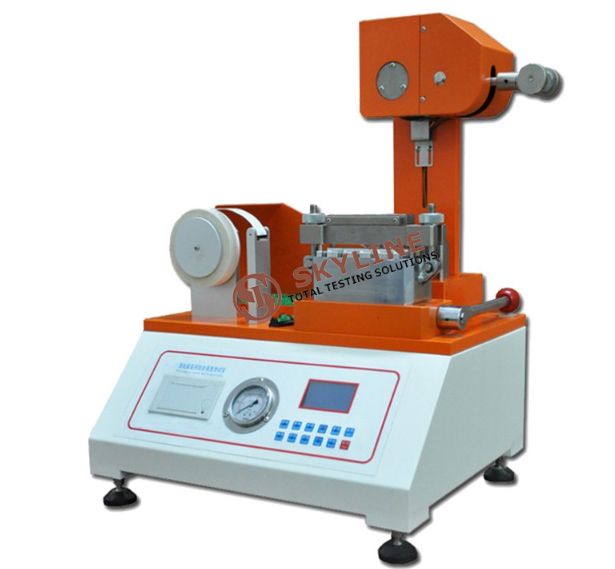

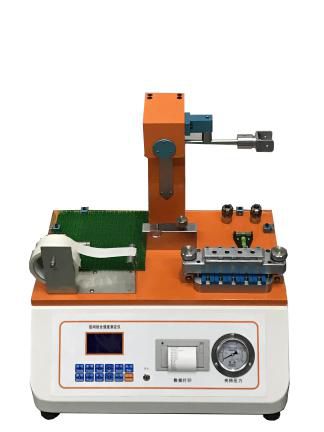

  • Interlayer Bonding Strength Tester

    Interlayer Bonding Strength Tester

    Interlayer Bonding Strength Tester

    Interlayer Bonding Strength Tester

  • detailed description
  • Interlayer Bonding Strength Tester



    Use:
    The interlaminar bond strength tester is a special test instrument for testing the tensile strength (ie, the internal bond strength or the interlaminar bond strength) of paper and paperboard.


    Test principle:
    The energy absorbed by the test piece of the test paper after being impacted by a certain angle and weight, and showing the strength of peeling between the layers of the paperboard.
    It is mainly suitable for the determination of the bonding strength between various types of paper surface layers. It is an ideal testing equipment for paper tube production enterprises, quality inspection agencies and other departments.



    Technical parameters:

     Impact angle Punch angle  90°
     Resolution  0.001lbf/in2
     Measurement range  A range: (20-500) J/m2,B range: (500~1000) J/m2.
     Display value error  A range: ±1J/m2, B range: ±2J/m2
     Sensor  SH30-5000-2V
     Sample size  25.4mm × 25.4mm
     Sample clamping force  0~40kg/cm2 (adjustable)
     Unit  J/m2, lbf/in2
     Interface  3.2in LCD display
     Printing  Modular integrated thermal printer
     Power supply  AC220V±22V, 50Hz, maximum current 3A, the power supply should be reliably grounded
     Appearance size  52cm × 42cm × 70cm
     Weight  62kg
