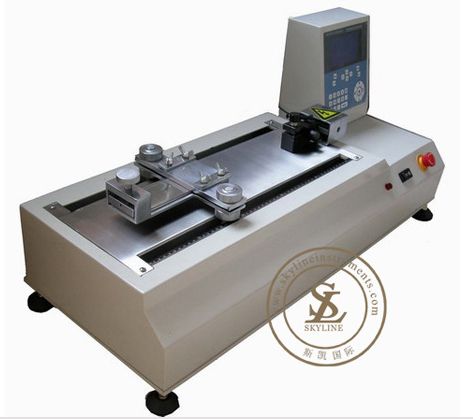

  • SL-T808 Computer Controlled Horizontal Tensile Testing Machine

    SL-T808 Computer Controlled Horizontal Tensile Testing Machine

  • detailed description
  • SL-T808 Computer Controlled Horizontal Tensile Testing Machine


    Product information

    It is used to lift belt, chain and rope type do products tensile testing of special equipment. According to the sample specification length can be adjusted step stretch space, computer control and display the test force and test curve, automatic processing according to the requirement of the test method of test data, has convenient operation and steady load, the body characteristics of bearing capacity.


    Features

    The machine adopts the frame overall steel welding horizontal frame structure, space adjustment done by oil cylinder drag bar, hydraulic automatic bolt. Through the electro-hydraulic servo loading system, using imported electro-hydraulic proportional servo valve closed loop control, complete test has high reliability and scientific.


    Application
    This tester is lifting belt, chain and rope type do products tensile testing of special equipment. According to the sample specification length can be adjusted step stretch space, computer control and display the test force and test curve, automatic processing according to the requirement of the test method of test data, has convenient operation and steady load, the body characteristics of bearing capacity.

    Feature
    The machine adopts the frame overall steel welding horizontal framework structure, space adjustment done by oil cylinder drag bar, hydraulic automatic bolt
    Main technical parameters
    Biggest test (kN): 600, 1000, 3000, 5000, 3000; Load range: 2-100% FS.
    Force test accuracy: + / - 1%; Test force resolution: 1/500000 code;
    Stretch space (not including piston stroke): 2000-5000 mm; (or customized).
    Piston stroke: 500-1500 mm; (or customized) minimum clamping distance: 1000 mm; Displacement measurement resolution: 0.01 mm.
    Piston idling speed fast forward: not less than 200 mm/min.
    The test speed: 0-120 - mm/min; Space adjustment methods and scope:
    Hydraulic cylinder pushing, bolt fixed
    Load mode: load sensor load;
    Controlled trial way: computer automatic control experiment process, computer screen test power and test curve, automatic processing according to the requirement of the test method of test data;
    Sample clamping method: based on sample provided by the user customization.
    It can display a variety of test curve: force - displacement and force - time, force - deformation, stress and strain, etc.
    Separating the console with the host, has the safe distance, the host has safety protection measures;
    Configuration facilities, including strength calibration system, anchor bolt, etc.; Power (KW): 2.5, 4.5, 10, 25, and 55.
