- Site：Home > Tensile Strength Testing Machine > SL-T810 Ring Crush Strength Tester
- Product Images
- detailed description

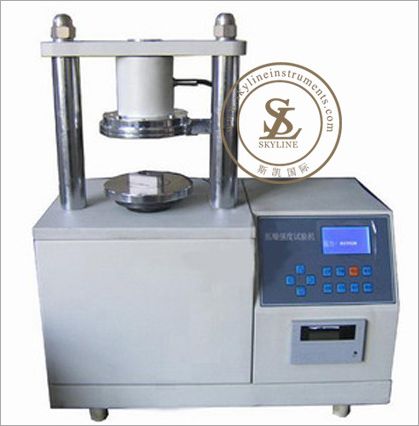

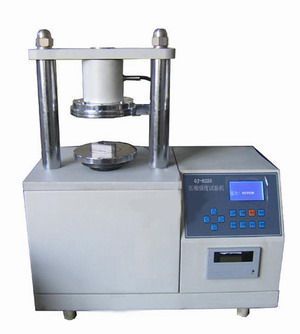

SL-T810 Ring Crush Strength Tester
Use
Quality testing can be performed on a variety of paper ring crush, horizontal pressure, side pressure, adhesive and general compressive 5 kinds of tests.
Induction principle
This machine with high precision sensor, the software analysis in digital show the strength of specimen. Specimens will be placed in the film, the specimens with clamp, and then pressure evenly, make sample free bulging with film, until broken sample, applying a maximum hydraulic specimens pop strength values. The ring compression testing machine is designed for mechanical and electrical integration structure, use of modern mechanical design concept and microcomputer processing techniques for rational design meticulously. Instrument adopts the press table stationary and high accuracy of measurement. Standard of instrument has contained in the various parameters testing, conversion, adjust, data printing, etc. Has powerful data processing function, can direct the statistical results of all information, convenient operation, easy adjustment, stable performance.
Conform to the standard
CNS2956, JISP8126, TAPPIT472
Standard configuration
A pay of vertical pressure clamp
Optional configuration
Parallel sampler, Ring crushes sampler, Extrusion fixture, Flat fixture, Agglutination intensity of fixture.
Technical parameters
Capacity 60 ~ 5000 n
Accuracy
value for + / - 1%
Resolution
1 n
Linking piece
￠100 mm
Pressure plate spacing
75 mm
The test speed
12.7 mm/min
Geometric error
flatness < 0.05 mm
Parallelism error is less than 1/2000 x B (B is circular clamp diameter)
Marion 1/4 HP
Size
500 * 270 * 270 mm (W * D * H)
Weight
52 kg
Power supply
1 30, AC220V, 1.5 A
