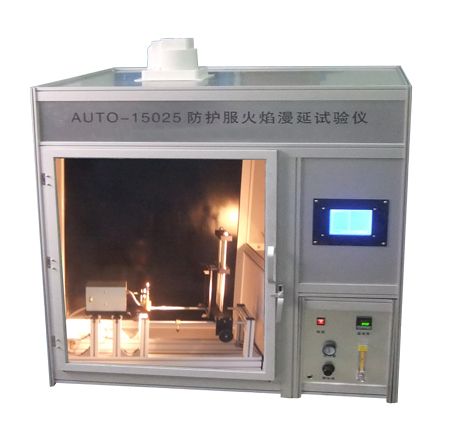

  • SL-F40 ISO15025 Protective clothing Flammability Tester

  • detailed description
  • ISO15025 Protective clothing Flammability Tester SL-F40


    This protective clothing flammability tester is designed according to ISO15025 standard.

    It is mainly used for simulation technology assessment protective clothing on fire danger of the spread of flame performance. It also can measure limited flame spread properties of vertically oriented textile fabrics and indurstial products in the form of single or multi-component fabrics when subjected to a small defined flame.

    Technical parameters

    Flame Angle : 0°、30°、90°
    Height of Flame: 25±2mm  40±2mm
    Flame time :  +/-1 s (can be adjustable)
    Precision for after flame time & glow flame time: ±0.1s
    Burn tube according to standard  ISO15025, with copper material
    Gas supply: Methane Gas

    Dimension  : L1200mmXW 900mmxH1300mm

    How do you test the flammability of fabric?

    The test method is ASTM D1230-17 involves inserting a specimen into a frame, drying it in an oven, and placing it into a desiccator before testing. This framed specimen is held in the flammability tester at a 45-degree angle, and a standardized flame is applied to the surface near the lower end.

    What is ASTM D6413?

    ASTM D6413 is the Standard Test Method for Flame Resistance of Textiles (vertical test). ASTM D6413 is used to determine flame resistance of fabrics used to protect against both electric arc and flash fire hazards.
