  • SL-F26 Digital Fabric Pick Counter

    SL-F26 Digital Fabric Pick Counter

    SL-F26 Digital Fabric Pick Counter

    SL-F26 Digital Fabric Pick Counter

    SL-F26 Digital Fabric Pick Counter

  • detailed description
  • Digital Fabric Pick Counter



    Product Introduction

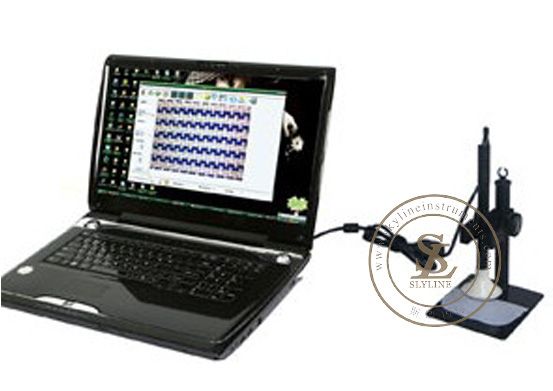

    Digital Fabric Pick Counter is suitable to determine the thread density of woven fabrics and loop density of knitted fabrics. The instrument consists of a camera and measuring software. Equipped with a portable high-precision camera to capture and magnify pictures of fabrics. The number of threads or loops on captured pictures can be counted easily on the screen of the computer by the software FABRIC-EYES.

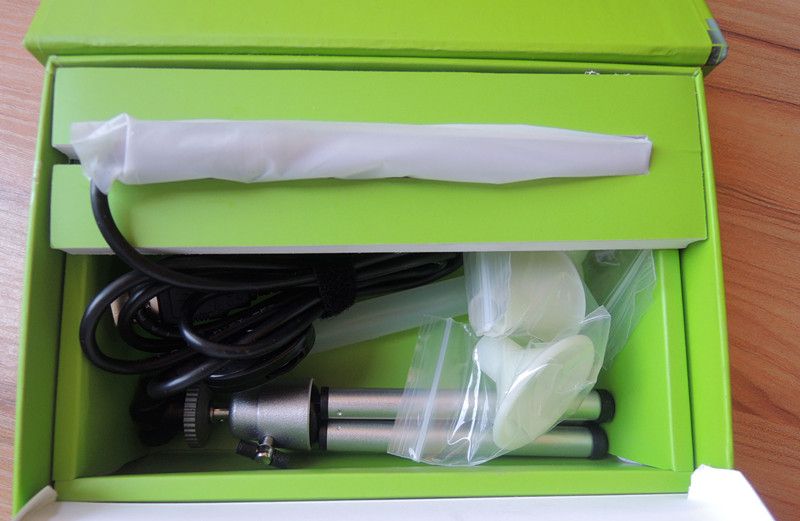

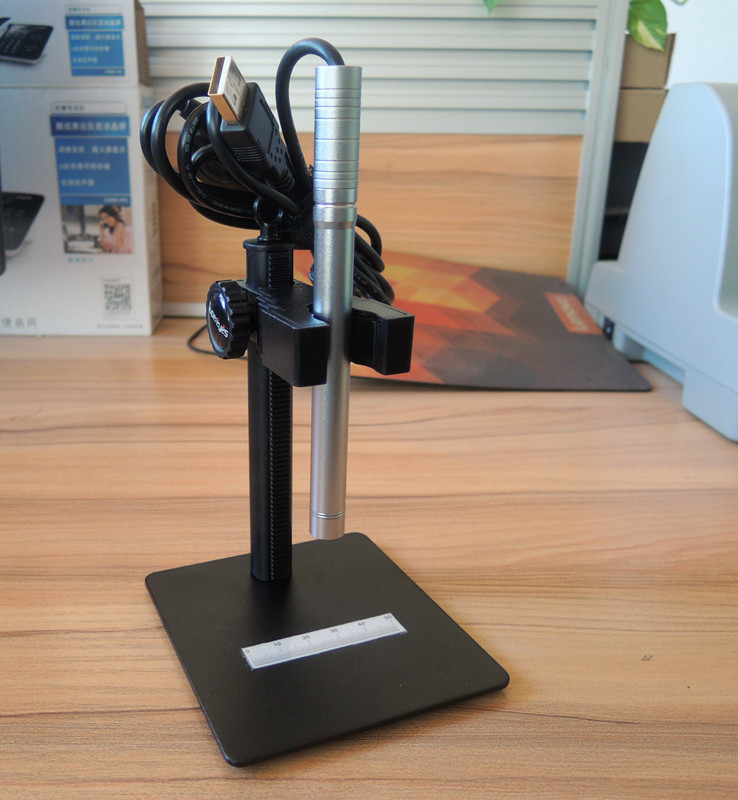

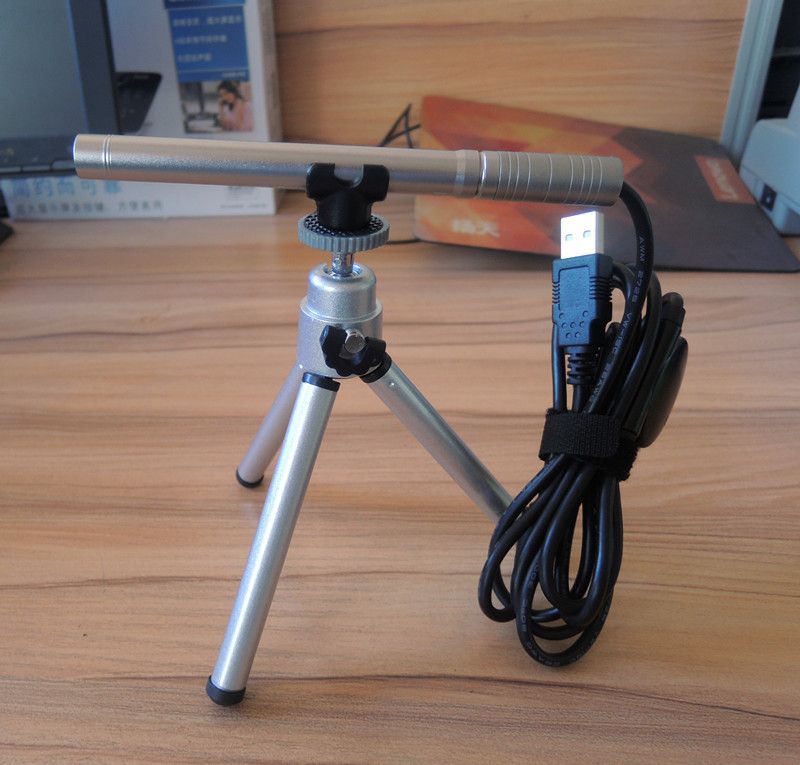

    The magnification of the portable camera is 20~400× and the camera can be connected to PC through the USB interface. The camera is equipped with a snapshot button, LED light control wheel and focus wheel on itself and matched with a CD with the content of the software to operate it. Pictures can be captured through the software or by pressing the snapshot button on the camera.



    Testing Standards

     ISO 7211.2   ASTM D3775


    Product Features

    1.Two language version software, in Chinese or English according to the requirement of customers;

    2. The camera is portable and can be connected to the PC by the USB interface;

    3. Three measuring methods: “Auto Count”, “Positioning Count” and “Manual Count”; can be applicable for

    different colors and patterns fabrics;

    4. The measuring software is equipped with the function of memorizing the positioning, so it is convenient for

    users to measure the count on different pictures of the same fabric with the same positioning.

    5. The color of the measuring lines can be changed according to the color of fabrics in case that error is

    caused by the closeness of the color of measuring lines to that of fabrics.

    6. The software will automatically display a standard line on the picture to check whether the positioning is accurate or not after the manual positioning.


    Technical parameters
      Magnification of the camera       20×~400×
      Specimen           Woven fabrics, knitted fabrics
      Measuring direction               Vertical/Horizontal
      Counting direction            Warp-wise/Weft-wise
      Display mode                         Thread/10mm and thread/inch
      Mode of storing results   In text files
