- Site：Home > Toys Safety Testing Equipment > Physical & Mechanical Testing > EN1888-2018 Baby Stroller Wheel Abrasion Tester
- Product Images
- detailed description

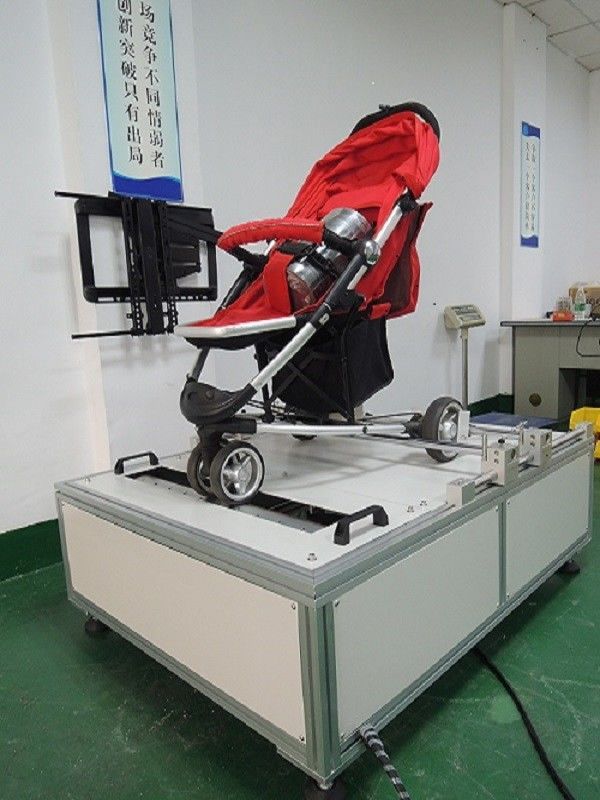

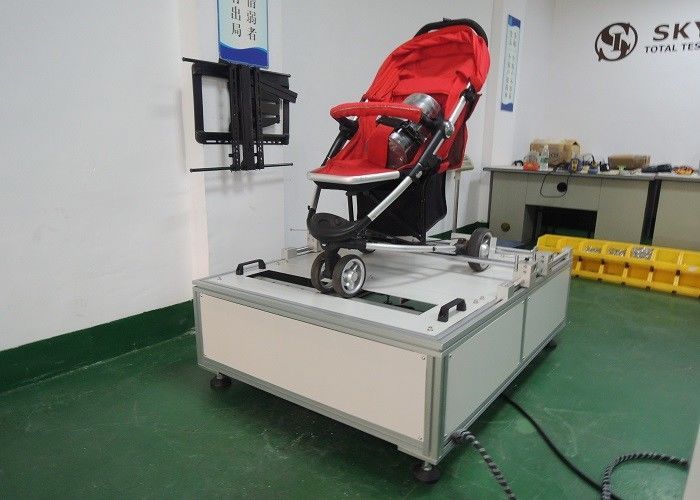

EN1888-2018 Baby Stroller Wheel Abrasion Testing Machine
Product Description
It is for testing the stroller wheel performance on the harmful roadway,after doing the repeat impact test,examine the wheel change the Shape or damage. (Base on the EN-1888-2018 requirement/Customer specified requirement) User can preset speed and cycle quantity in the PLC interface.
Applications
This wheel abrasion conditioning shall be performed after the irregular surface test (8.10.3)
Abrasion conditioning shall be performed on a drum speed of (5+/-0.1)km/h 3.100,000times.
Key Specifications
Experiment work One station Test speed 5km/h±0.1km/h Drive horsepower AC380V*3 diameter*3HP Up and Down Pitch Max.300mm Effective width Max.1000mm Test surface Sand paper 80 # Bearing load Max.100LB Power AC380V, 5kw Machine size 3300*1400*1900mm Weight 600kg Shape of impact block Trapezium, halfarc or specified.
