Product information

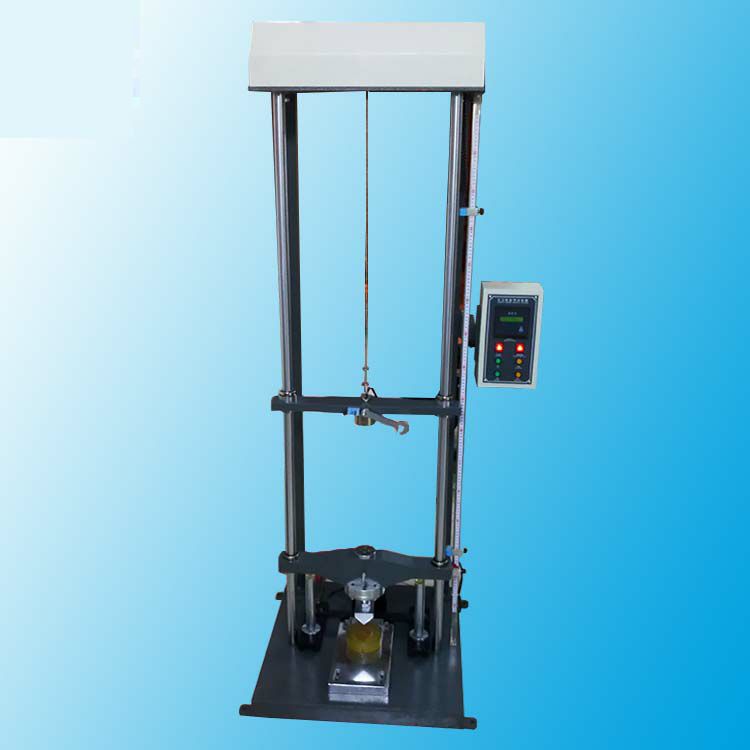

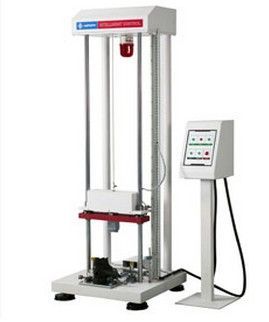

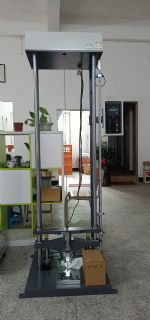

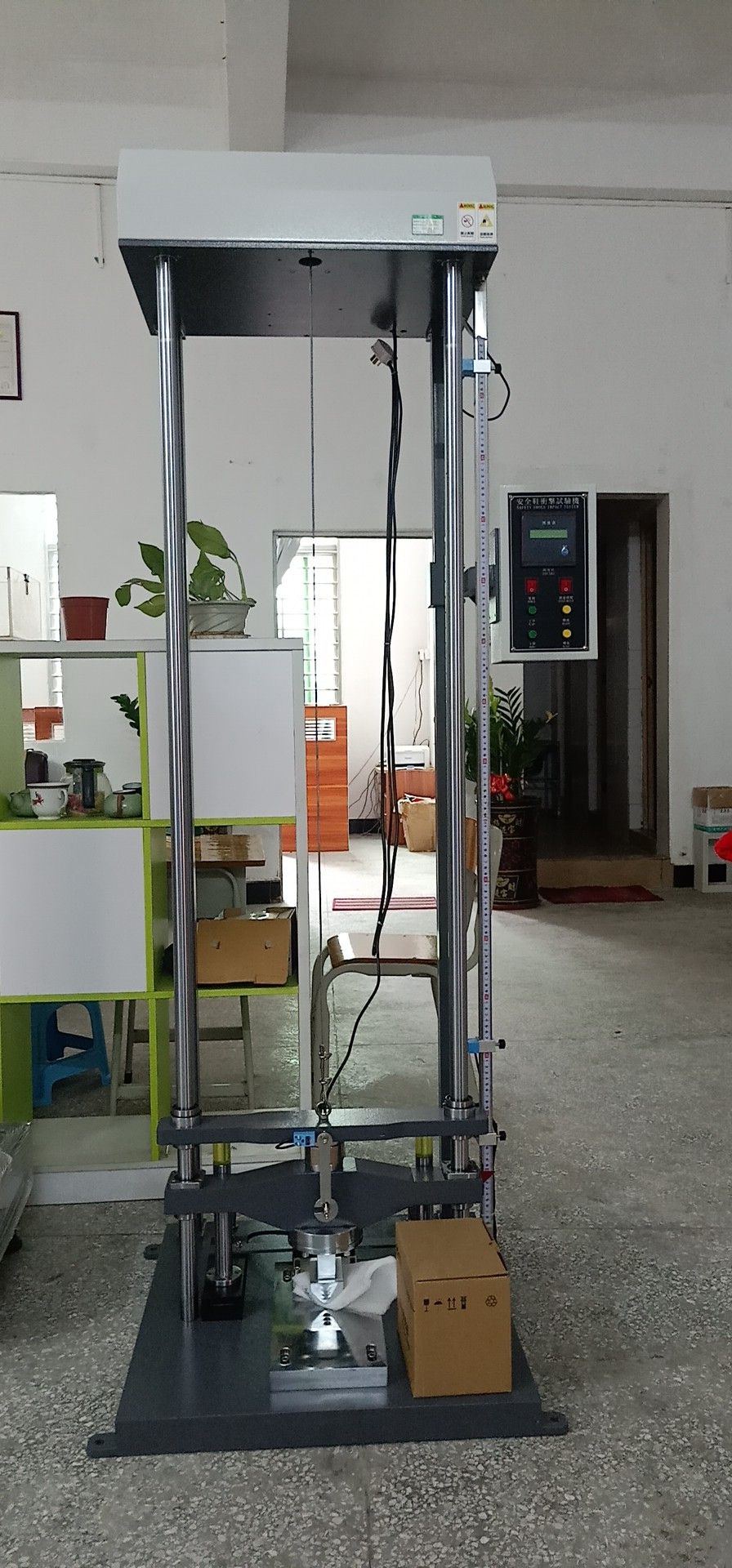

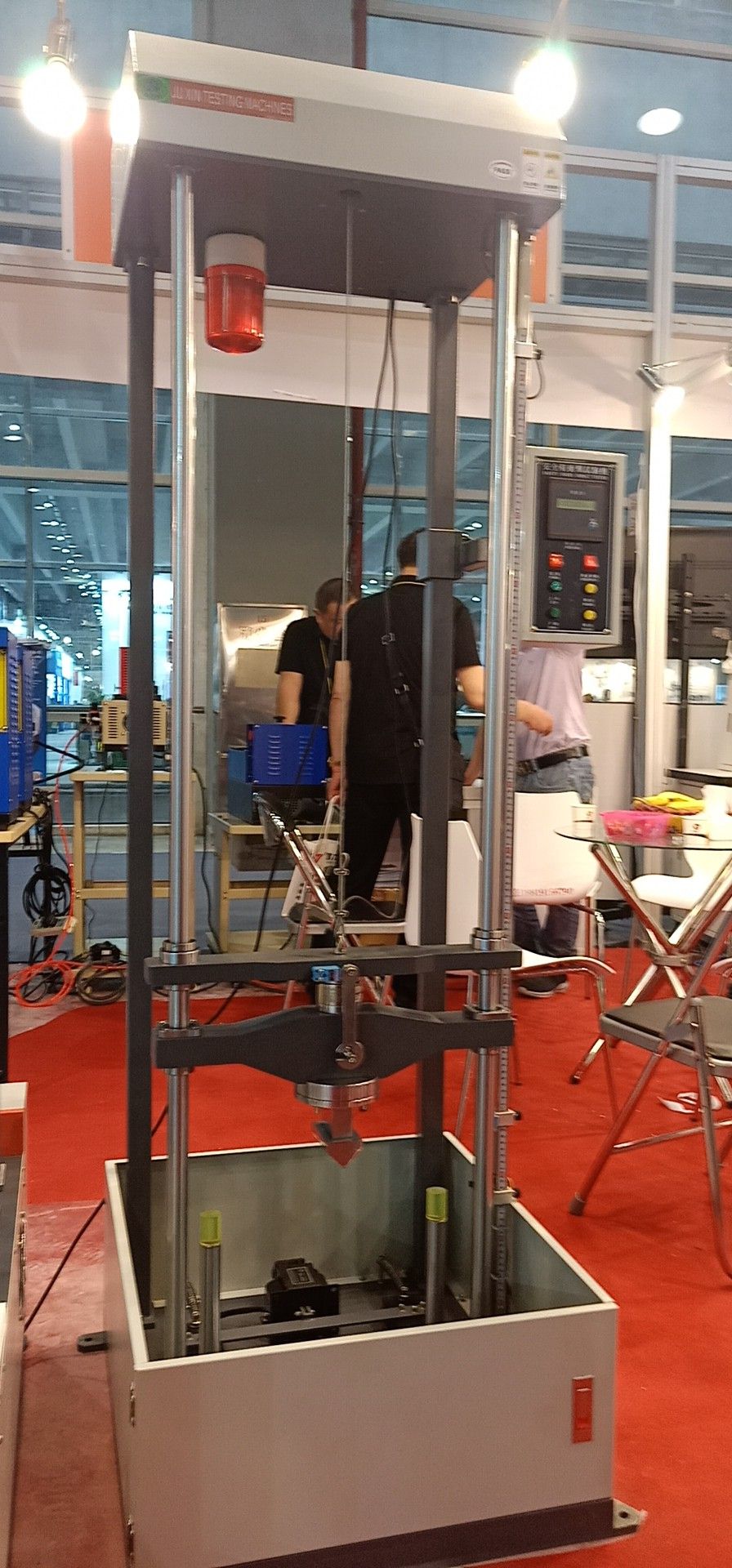

This machine, incorporating a steel striker adaptered to fall freely on vertical guides from a predetermined height to give the required impact energy to the toe of safety footwear for measuring the degree of the dent. In addition, the toecap should not develop any cracks on the test axis with go through the material.



Purpose

Evaluate the smash resistance of the toe cap of a safety or protective shoe.



Test principle

The impact hammer of the toe impact tester falls from the set height, impacts the toe of the safety shoe or the protective shoe with a certain energy once, and is placed in the toe of the safety shoe or the protective shoe by the measurement after the impact. The minimum height of the sculpture clay cylinder, as well as the size of the toe cap and whether the protective toe cap in the toe cap breaks and transmits light to evaluate the safety performance of the safety shoe or the protective shoe toe.



Technical parameters

Falling weight	20 ± 0.2 kg ; 22.7 ± 0.23 kg； 5±0.1kg(Optional)
Impact energy	10~200J Optional
Stroke	0~1100mm Adjustable
Dimension(W×D×H)	Main unit:83 cm ×60 cm ×235 cm
Control cabinet	27 cm ×27 cm ×115 cm
Lifting method	Motor drive
Weight (approx.)	240 kg   650kg
Power supply	1∮ AC 220V 50Hz(or specified by user)
