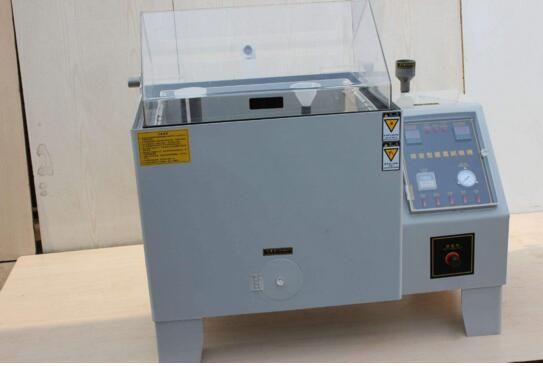

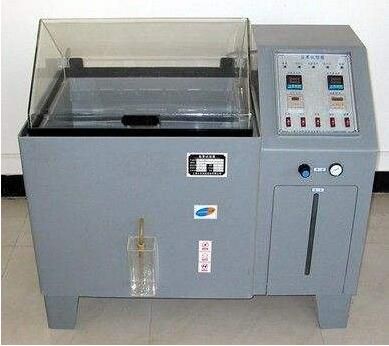

    Salt Spray Test Machine

  • detailed description
  • Salt Spray Test Machine


    Product Introduction

    Salt spray test machine is for a variety of materials surface treatment, including coatings, electroplating, organic and inorganic film, anode treatment, anti-rust oil and other anti-corrosion treatment to test its corrosion resistance, thus establishing the quality of the product.



    Technical parameters

    Inner box size

    60×40×45

    90×60×50

    120×100×50

    (L×W×H) cm

    Outside box size

    107×60×118

    141×88×128

    190×130×140

    (L×W×H)cm

    Equipment material

    Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C.

    Temperature range

    35°C~55°C

    Temperature fluctuations

    ≤±0.5°C

    Temperature uniformity

    ≤±2°C

    Temperature precision

    ±1°C

    Test chamber temperature

    NSS ACSS 35±1°C CASS:55±1°C

    Saturated air barrel temperature

    NSS ACSS 37±1°C CASS 57±1°C

    Brine temperature

    35°C±1°C

    Spray quantity

    1.0~2.0 ml / 80cm2 / hr

    PH

    NSS ACSS6.5~7.2 CASS 3.0~3.2

    Lab volume

    108L

    270L

    600L

    Brine tank capacity

    15L

    25L

    40L

    Power

    1AC220V,10A

    1AC220V,15A

    AC 1,220V,30A

    Multiple safety protection devices

    Water shortage/ over temperature / phase protection

    Standard accessories

    Test salt, measure bucket, tool etc 1 set



    Features
    1. Imported gray P.V.C board system, special treatment corrosion resistance. Plastic V-shaped frame and stainless steel tube corner objects, to ensure that the sample into a 30-degree angle, four-wheel glide, can push to go.
    2. Fine workmanship, beautiful appearance, high transparency, pneumatic open cover.
    3. With automatic / manual water system, with water level is insufficient when the automatic / manual replenishment function. The experiment is not interrupted to meet the diverse requirements of the guests. (Automatic replenishment only need to access the water pipe can be)
    4. Nozzle: spray tower with cone-shaped disperser, with a guide fog, adjust the amount of fog, and uniform fog and other functions.
    5. With high-precision multi-function timer, the test time can be set to multi-functional. With power failure memory function, call back to power before the time to continue to work until the completion of the required time to avoid duplication of the experiment after power failure.
    6. Salt spray experiment using steam direct heating method, heating speed, temperature distribution, reduce the standby time.
    7. Two-button automatic operation. With full detection fault early warning system. A fault can be turned on and the alarm is displayed
    8. Use built-in fog collection tube two. Than the traditional external type compared to more difficult to bad.
    9. With overload short circuit protection. To prevent the occurrence of abnormal damage to the instrument and the instrument internal electronic control accessories.
    10. Inside and outside the box to connect the sealing groove, the use of water to prevent salt spray leakage.
    11. Import temperature controller using digital display, PID control, error ± 0.1
    .
    12. Temperature range: 1: Laboratory temperature: 35
    - Pressure tank temperature: 50 (can be arbitrarily set)
    2: laboratory temperature: 47
    - pressure tank temperature: 63 (can be arbitrarily set)
    13. Reagent bottle with hidden with water level through the window, easy to clean, easy to rupture.
    14. Heating rate: 1: laboratory, room temperature --- → 35
    about 35 minutes
    2: pressure tank, room temperature --- → 47
    about 15 minutes
    15. Temperature accuracy: ± 1

    16 Applicable international standards: RELATEU STANDARDS CNS 3627,3885,4159,7669,8866; JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO3768, 3769, 3770; ASTM B-117, ASTM B-268 B-268, GJB150.
