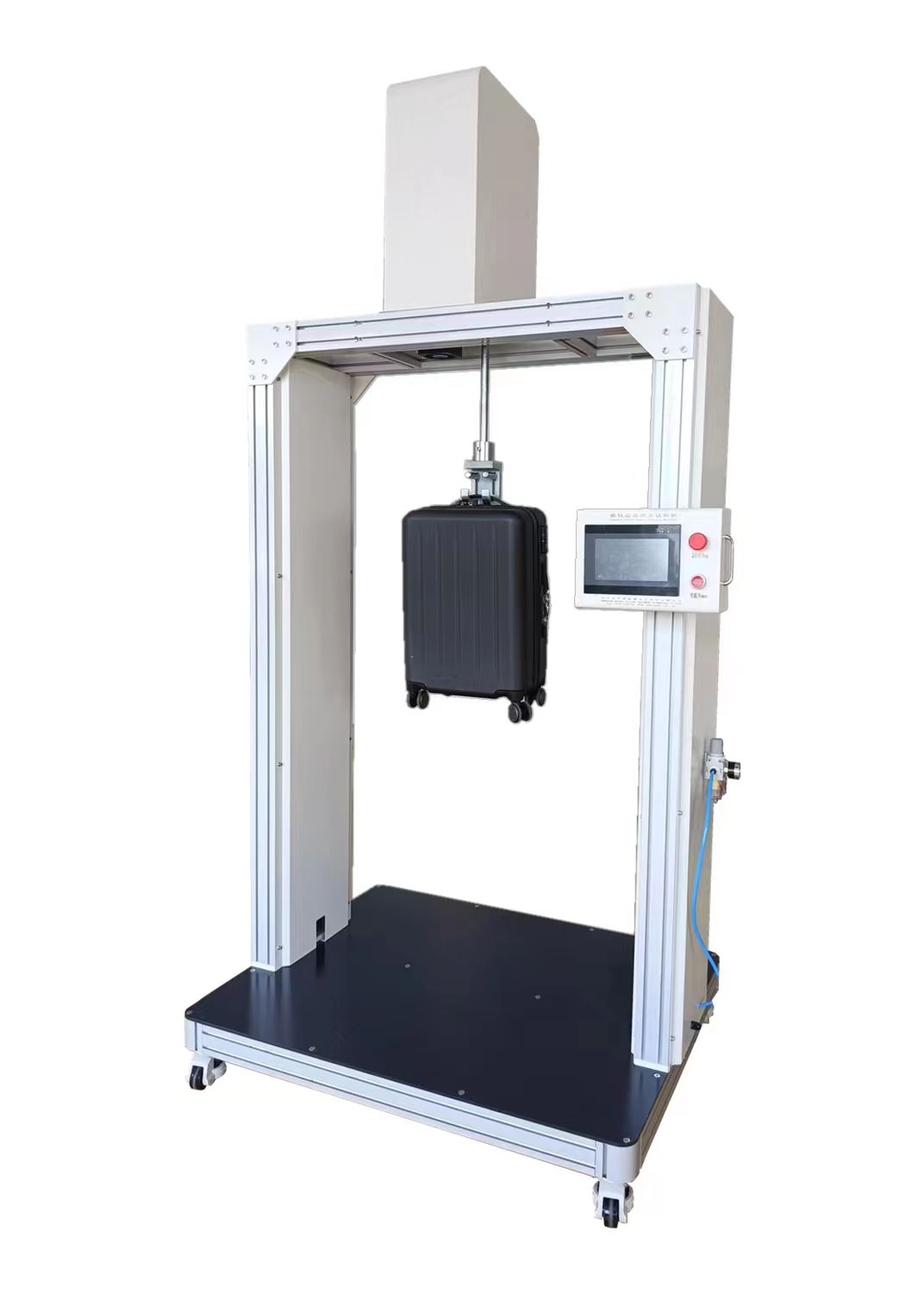

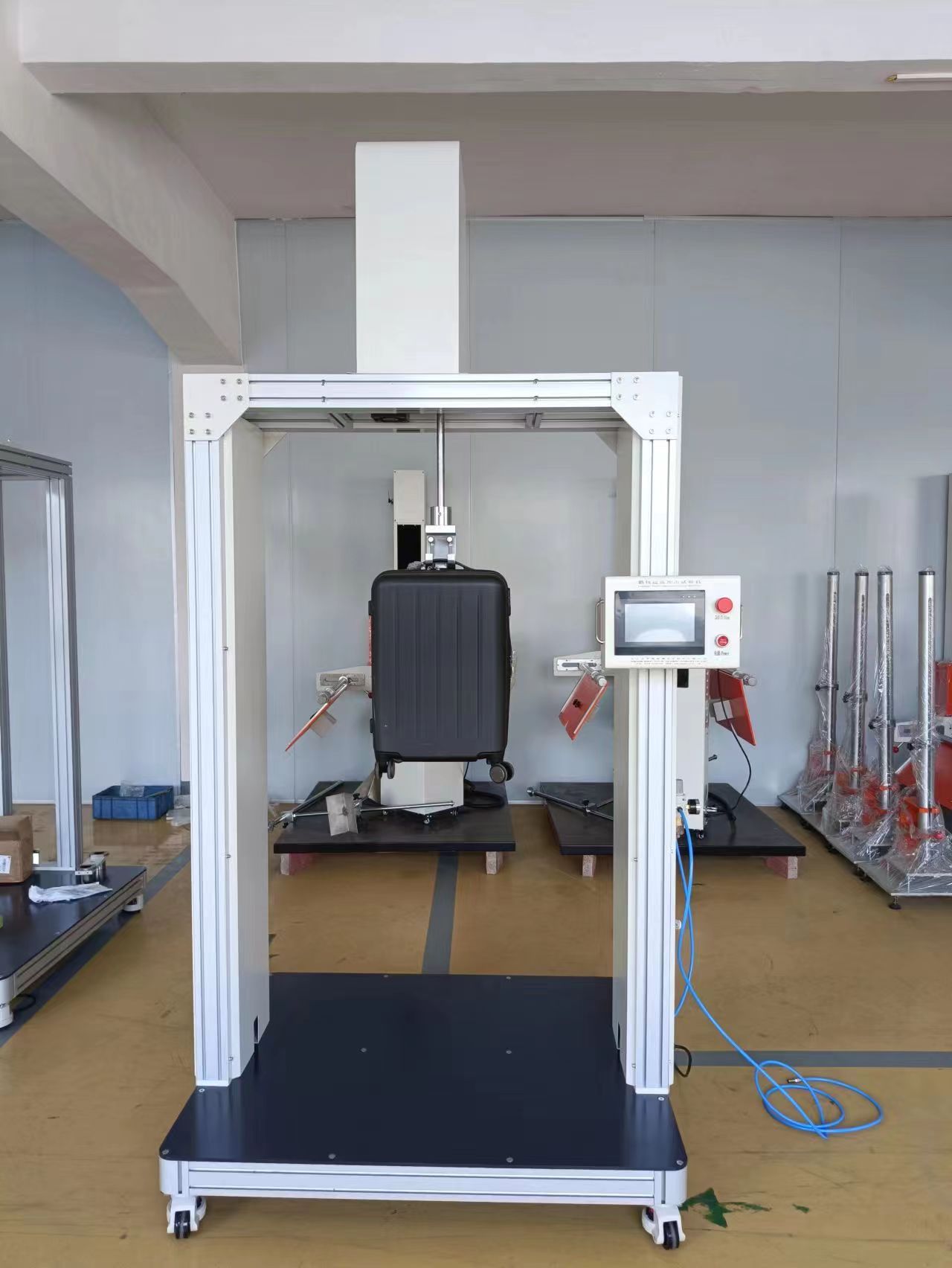

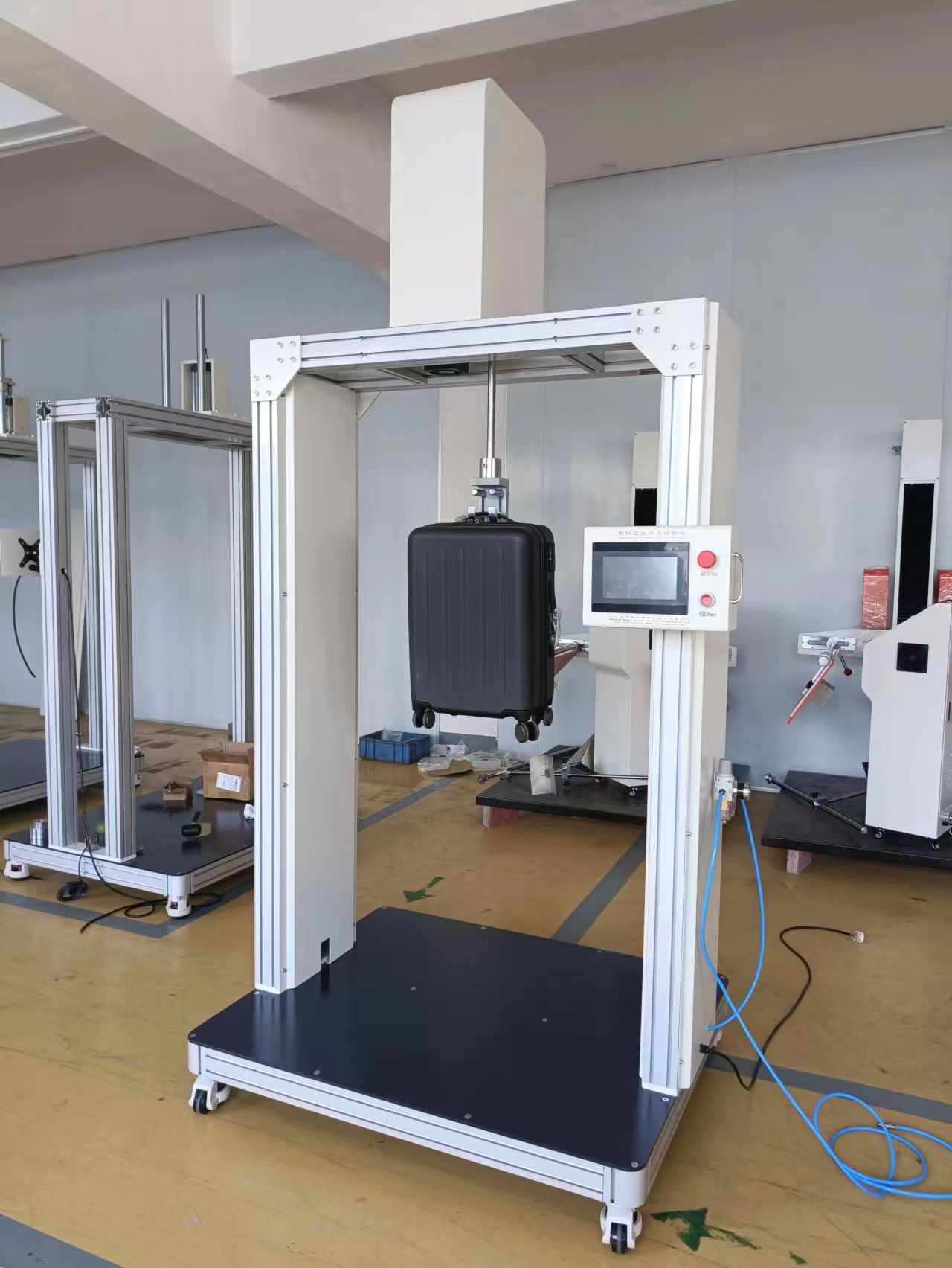

  • Luggage Handle Jerking Tester

    Luggage Handle Jerking Tester

    Luggage Handle Jerking Tester

  • detailed description
  • Handle Jerking Tester


    Product Introduction

    Luggage Handle Jerk Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute and the impact height of 4 inches for 2500 times. The tset result can be taken into consideration of quality improvement.

    This product is used for comprehensive testing of bags as the basis for quality improvement.


    Principle

    This machine according to the Test specification production: Test method is, the luggage handle hook on the oscillator hook, with rope fastened, then put a certain weight in the package load, set the control times and speed, and start testing to understand its structural performance.



    Technical parameters

     Mode

     SL-TL03

    Drop distance

     150mmadjustable

     Spring constant

    17.54+/-0.88N/mm

    Frequency

    20+/-2 cycles per min

     Testing Speed

     5~20 times/min, adjustable

     Times Setting

     0~9999, automatic stop

    Outer Diameter of spring

    44.5+/-0.5mm

    Inner diameter of spring

    28+/-0.5mm

     Additional Functions

    it will automatically stop when the test piece is dropped in the middle

     Dimension

    270cm(H)*120cm(L)*140(W)cm

     Weight

     390 Kg

     Power

     1, 220V/50Hz

     Design criteria

     Q310106000080C001-2018
