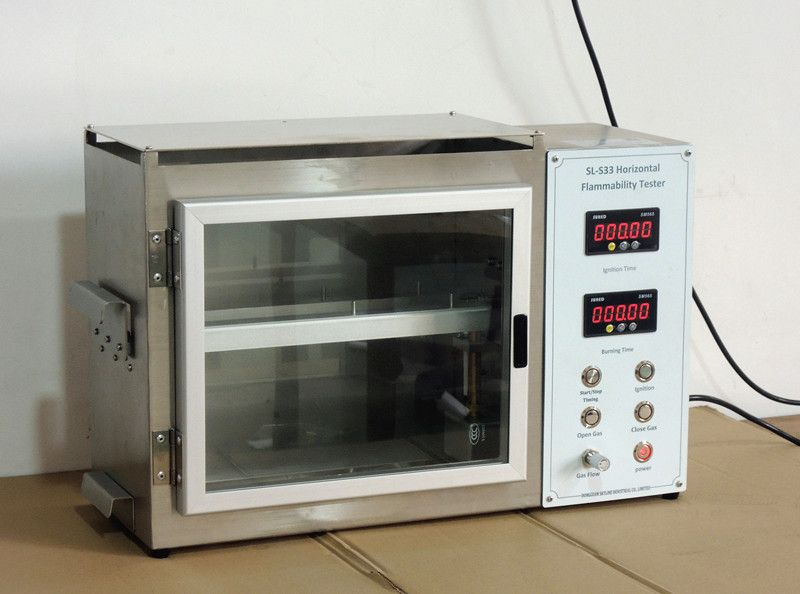

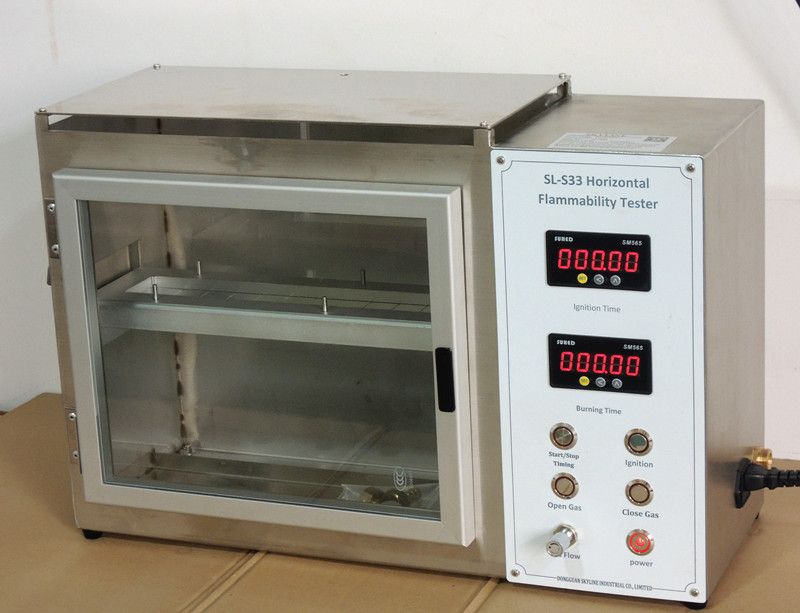

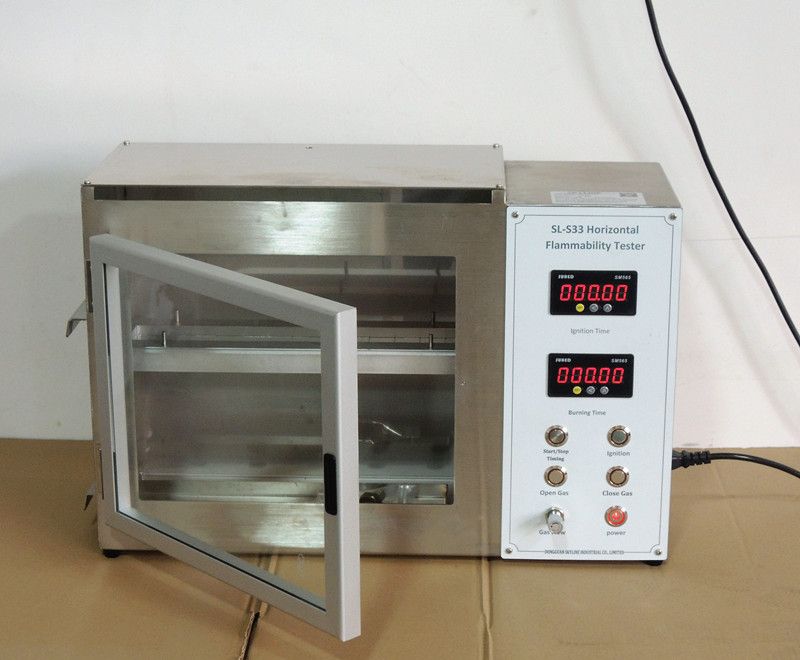

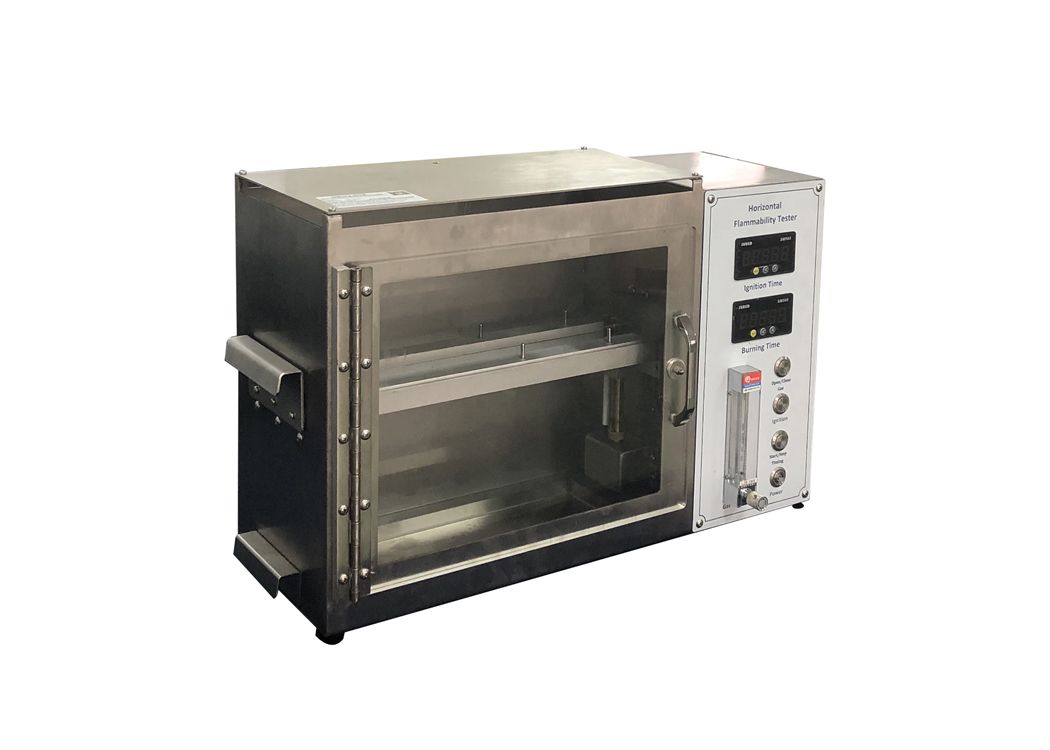

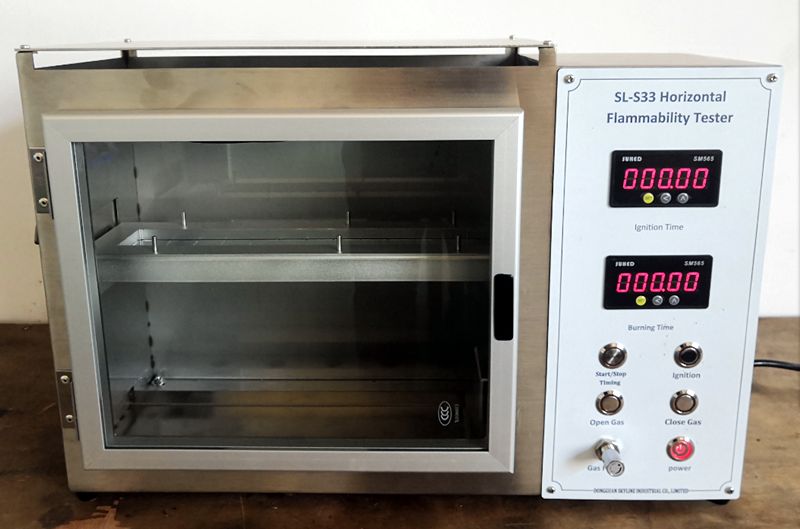

  • SL-S33 FMVSS 302 Horizontal Flammability Tester

    SL-S33 FMVSS 302 Horizontal Flammability Tester

    SL-S33 FMVSS 302 Horizontal Flammability Tester

    SL-S33 FMVSS 302 Horizontal Flammability Tester

    SL-S33 FMVSS 302 Horizontal Flammability Tester

    SL-S33 FMVSS 302 Horizontal Flammability Tester

  • detailed description
  • Horizontal Flammability Testing Equipment



    Product Introduction

    Horizontal Flammability Tester, to determine the flammability of textiles and automotive interior. Horizontal flammability tester complies with ISO 3795, ASTM D5132, FMVSS 302, etc.

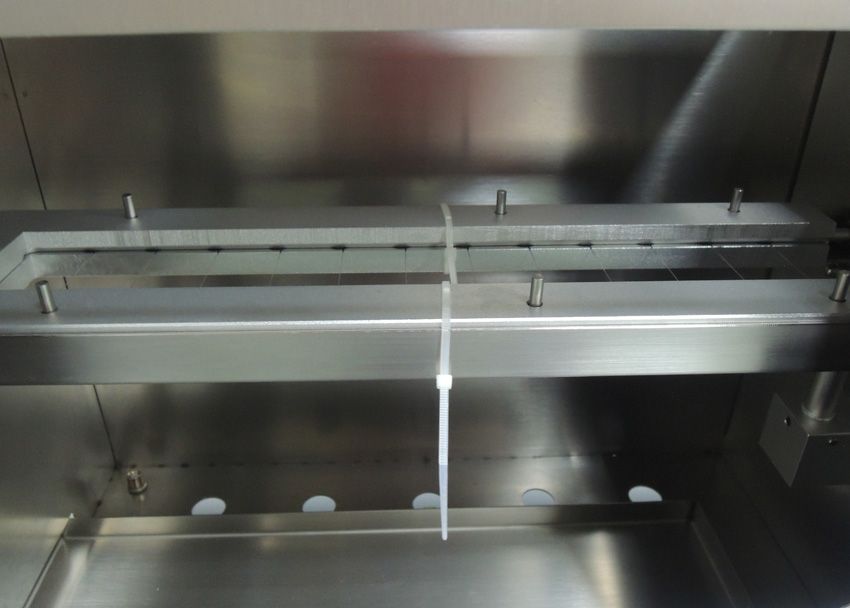

    Horizontal Flammability Tester, to determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Horizontal flammability tester is safe and easy to operate, Comprises draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
    Automatic gas and timing control system including solenoid control gas valve and automatic ignition timer and controls.

    Technical parameters

     Fire nozzle diameter  9.5mm
     Fire height  38mm+/-2
     Sample clamp  360x100mm
     Interior Dimension  330x50mm
     The sample below  25mm Pitch between metal wire is 25mm
     Marked line  Starting point 38mm/End point 292mm from Igniting point
     Distance from Nozzle to Sample  19mm
     Power    220 /110 V  50/60 Hz  2 A
     Weight    18 Kg
     Dimension for the flammability chamber  381mm×203mm×356mm
     Dimensions     460×200×400 mm(LxWxH)

    Standards

    ISO 3795,FMVSS 302,DIN 75200,SAE J369, ASTM D5132,JIS D1201,BSAU 1690


    NOTE: This Testing Equipment is in stock.



    Please review video of the Horizontal Flammability Tester operation as below link:
    https://youtu.be/lsOBffM3P-A

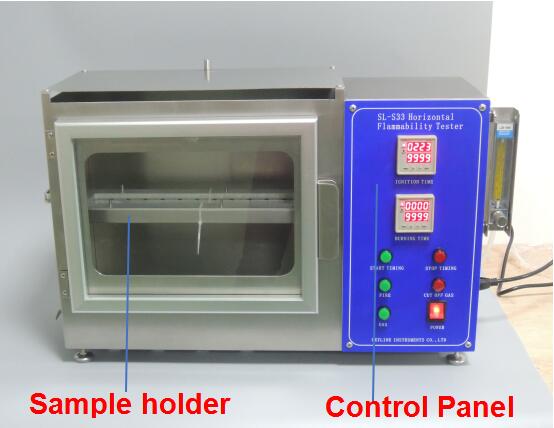

    ISO 3795 Automotive Interior Horizontal Flammability Testing Equipment



    ISO 3795 Automotive Interior Horizontal Flammability Testing Equipment

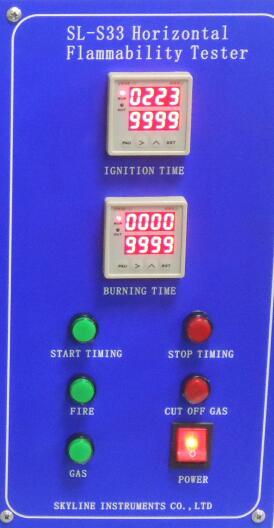

    Ignition Timer:Control ignition time, factory setting 15S.

    Burning Timer: The time the flame spreads from the first marking line to the second marking line, or the time when the second marking line is not extinguished.

    Start Timing:The flame spreads to the first marker line and presses this button to start the timer.

    Stop Timing:The flame spreads to the second marking line, press this button to burn the time timer to stop timing

    Gas:When the experiment is ignited, first press this button to open the air valve, turn on the steam source, and then ignite.

    Power:Instrument power switch


    What is the purpose of the flammability test?

    Flammability testing determines how easily a material or finished product will ignite or burn when close to fire or heat. It is therefore extremely important for maintaining safety around products used in residential, commercial, and industrial environments.


    What is horizontal burning test?

    Horizontal Bunsen Burner Test (for aviation) The Horizontal Bunsen Burner test is used by the aerospace/aviation industry to determine the resistance of cabin and cargo compartment materials to a flame applied for 15-seconds. It is most commonly used to show compliance with 14 CFR 25.853(a) or CAR 3.388(a).
