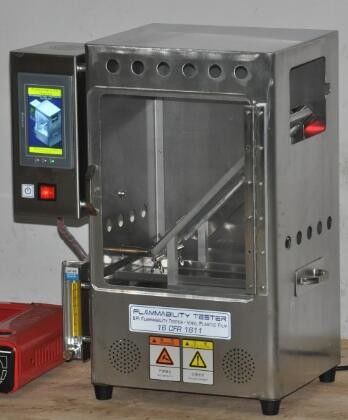

  • CFR 16 Part 1611 SPI Flammability Test Chamber

  • detailed description

  • 16 CFR 1611 Vinyl Plastic Film Flammability Tester ,SPI Flammability Tester


    Product introduction

    SPI Flammability Tester, to determine the ignition properties of vinyl plastic film material according to CFR 16 Part 1611 - U.S.A. Flammable Fabrics Act for flammability of apparel vinyl plastic film.

     The rate of burning shall not exceed 1.2 in./s as judged by the average of five determinations lengthwise and five determinations transverse to the direction of processing, when specimen is placed at an angle of 45 degree and expose to the standardized flame (22# fire nozzle, 1/2 inch. In length).

    Specifications
     The most advanced thread locking device and sample holder save 80% of operation time that faster than other suppliers’ design

    Equipped with photoelectricity sensor accurately and automatically record burning time with no damage ensures 5 years life or longer

    Timer accuracy up to 0.01 second;

    22# needle flame, 9/16inch from the specimen, flame length adjusted by flow-valve;



    Technical parameters

    Timing distance of burning: 6 inch
     Test box 30cmX25cmX37cm, 5pcs x 20mm vents on the left and right sides
    Sample holder 45°
    Marker line spacing 6”
    The nozzle is 9/16" from the surface of the sample"
    Flame length 1/2"
    Gas butane
    Sample size 3”x9”
    Volume (WxDxH) 46x29x52cm
    Weight (approx.) ≈20Kg

    Power supply 1∮ AC 220V 50Hz 3A

    Standards CFR 16 Part 1611


    Included Accessories
     set of main machine. Completed with cabinet, flow-meter, timer, transparent viewing window, etc.
     1 set of sample holder
     20 White cotton threads
     l 1 Sample cutting template
     5 22# Fire nozzles
