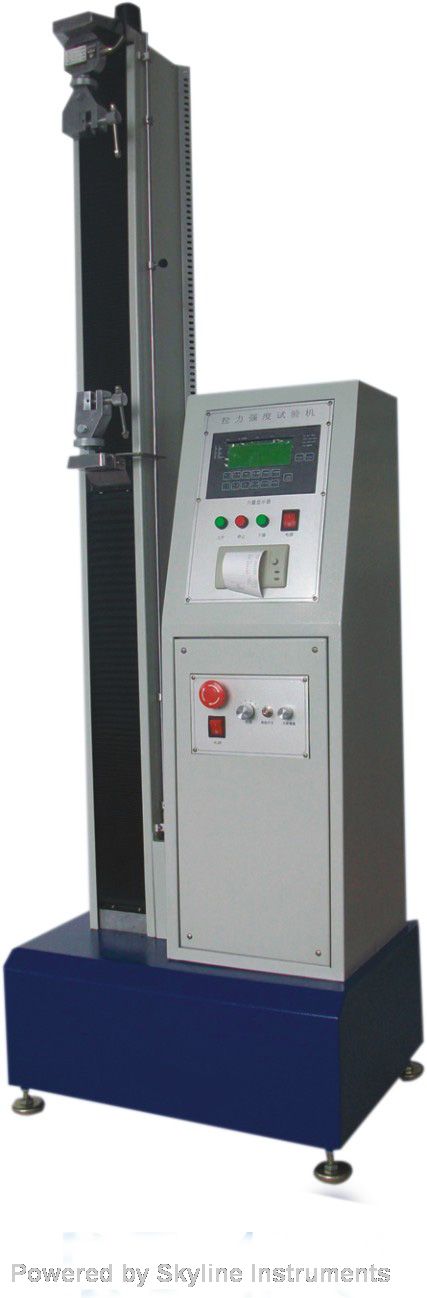

Single Column Microcomputer Tensile Tester

It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested
Specifications:
Desktop Microcomputer Tensile Tester
Capacity (optional) 5kg, 10kg, 20kg, 25kg, 50kg, 100kg, 200kg
Unit (Switchable) G, KG,  N,  LB
Load Resolution 1/100,000
Load Accuracy < ± 0.5%
Stroke (exclude the grips) 600~800mm or Customized
Stroke Resolution 0.5 mm
Sample Rate 16 times/sec
Test speed 50~300 mm/min selectable
Weight (exclude the grips) 75 Kg
Display LCD ( linkable to PC )
Motor AC motor with variable freq. drive
Dimension(W×D×H)-Main Unit 500×440×1500mm
Power 1ø, 220V/ 3A
Accessories Tensile grips 1 set
 Design Standards:  ASTM D903; GB/T16491; GB/T1040; GB/T8808; GB13022; GB/T 2790/2791/2792; CNS-11888; JIS-K6854; PSTC-7
 Characteristics
 1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
 2. Using a single-screen operation; do not need to switch the screen;
 3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
 4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
 5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
 6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
 7. With self-return & auto-correction function;
 8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
 9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.
