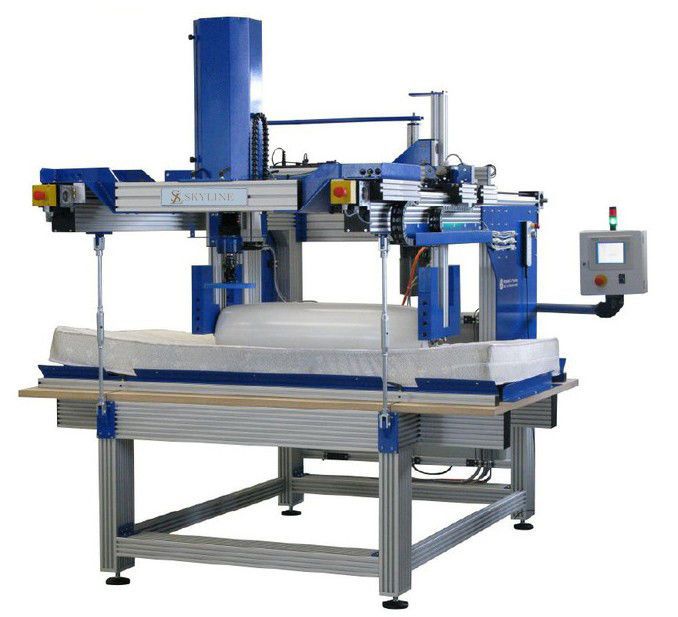

  • SL-T30 Furniture Testing Machine New Design Mattress Testing Machine

  • detailed description

  • Product Introduction
    New design Mattress Test Machine (Four in one)
    It is more compact and smart than the old model with the following features:
    Flexible test table frame. This makes the testing device very effective and space-saving.
    Multi-function can do below testing:
    a. Durability Testing of mattress surface
    b. Hardness Testing
    c. Height Testing
    d. Durability test for the edge of mattress
    Controlled by PLC frequency conversion
    Testing Standards: EN1957.QB171952.2

    After simply loosening the front frame reinforcement the specimen can be inserted into a flexible test table frame. This makes the testing device very effective and space-saving.
    The extensive testing and evaluation software LabMaster allows for a flexible parameter entry, the execution of different testing procedures, a graphical representation of measured values, test evaluation, and logging.

    The firmness rating Hs are determined independently by the programmed. When the pre-set number of cycles is reached, the test is ended automatically


    Technical parameters
    Field of application Testing of components for beds according to EN 1957
    Specimens Mattresses, cushion frames
    Maximum dimensions: 2.0 m x 1.2 m x 0.3 m
    Loading unit Roll, active load: 1400 7N
    Stroke: 250 mm
    Speed:sinusoidal
    Number of cycles: 16 2 /min
    Measuring device: load Load measuring range :0-2 kN
    Measuring device: position Resolution:<1µm
    Measuring range max. 500 mm
    Speed: 0.05-1000 mm/min
    Number of cycles, testing procedure Loading unit can be parameterised with PLC
    measuring device is software controlled
    definition of testing procedures can be done by the user
    Electrical connection 230V/50Hz
    Compressed-air supply Not necessary
    Dimensions: transport B x T x H  1460 x 2810 x 2050 mm
    Dimensions: installed B x T x H    2100x2810x2350mm

    Weight: 1300 kg


    How long should you test out a mattress?

    15 Minutes

    Lie Down For At Least 15 Minutes

    Experts suggest that you should lie down for a solid 15 minutes on a mattress to test its feel. This gives you ample time to realize the potential of a bed fully and whether it is supporting and contouring your body curves properly or no.


    What is mattress testing?

    Pressure. To measure pressure (a calculation that's factored into the Overall Score), we lay a mat equipped with 680 sensors over the mattress. A test subject then lies on his or her back, and the sensors record the level of pressure at almost every point where the body comes into contact with the mattress.
