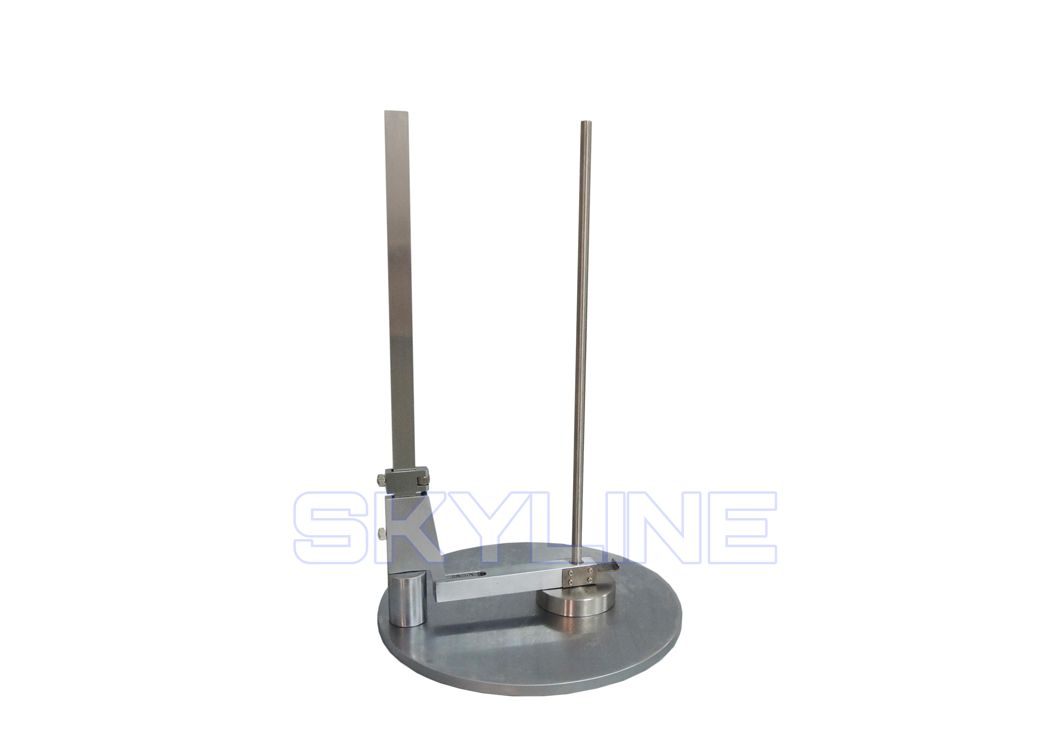

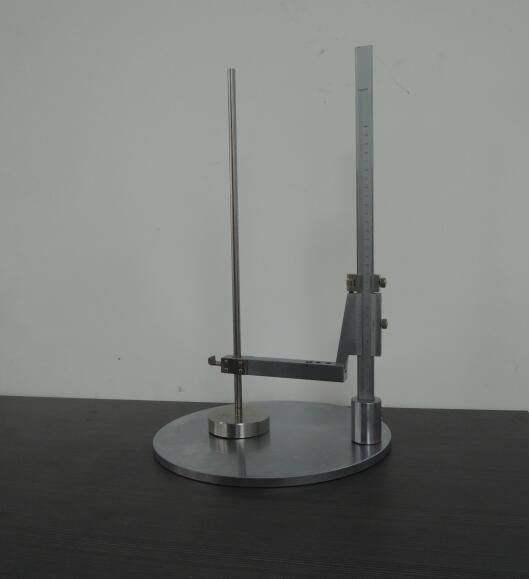

    SL-S11 1KG EN71 / EN 1400 Impact Tester

    SL-S11 1KG EN71 / EN 1400 Impact Tester

    SL-S11 1KG EN71 / EN 1400 Impact Tester

    SL-S11 1KG EN71 / EN 1400 Impact Tester

    SL-S11 1KG EN71 / EN 1400 Impact Tester

  • detailed description
  • High Quality Stainless Steel EN71 -1 1kg Impact Tester with Bearing


    Product information

    To simulate the mechanical damage through an impact action likely to be performed by a child. Assessment of sharp edges, sharp points and small parts may be carried out after impact.With metric imperial unit height dictate rule.


    Specifications

     Dimension  300(l) x300(w) x16(h) mm
     Adjust height  0-200mm
     Impact hammer diameter  80.00mm
     Impact hammer weight  1Kg
     Material  steel, surface chrome plating


    Testing Standards
    EN 71-1998 8.7 EN1400,ISO8124



    Product Features

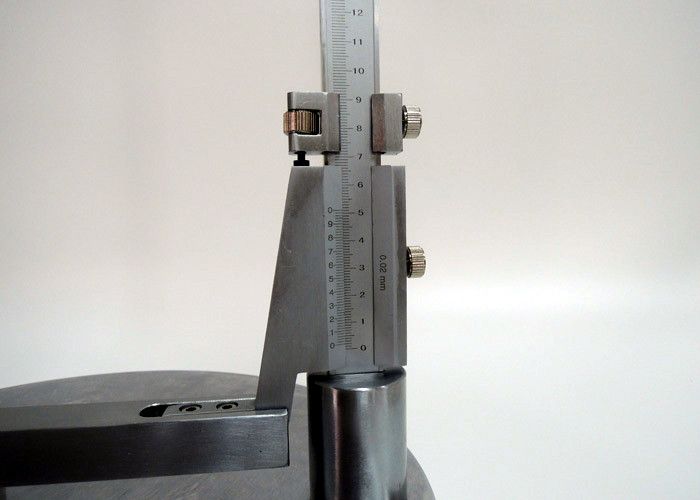

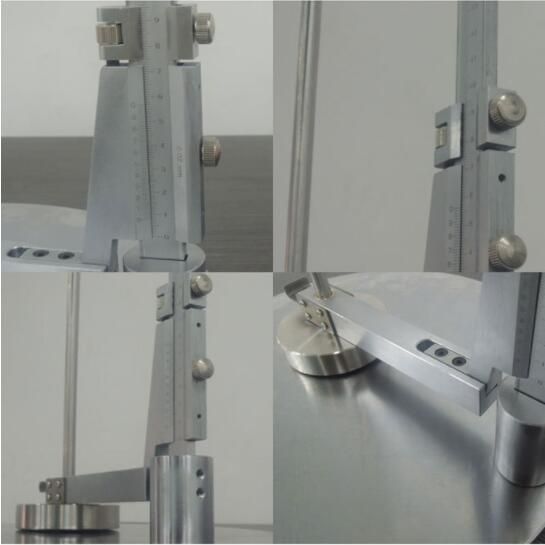

    1. Inline height scale with horizontal scale window.
    2. After the crossbar is set, it is locked by the set screw.
    3. The touch button activates the impact.
    4. With a male / English double height scale.

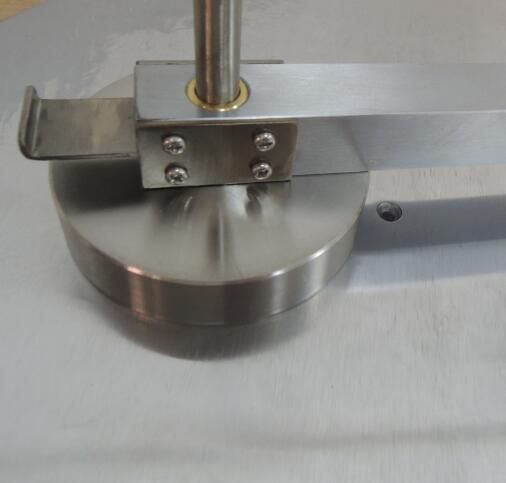

    5. The impact hammer has a buckle locking function at the highest position.
    6. Made of stainless steel, chrome-plated as a whole, no rust.



    Special (Selling point)

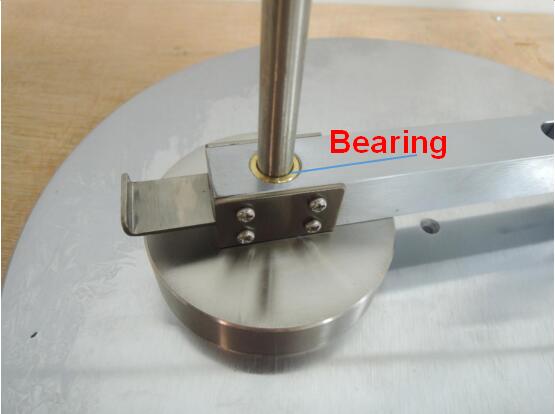

    1. Bearings, can make the test smoother, reduce friction and test results more accurately.

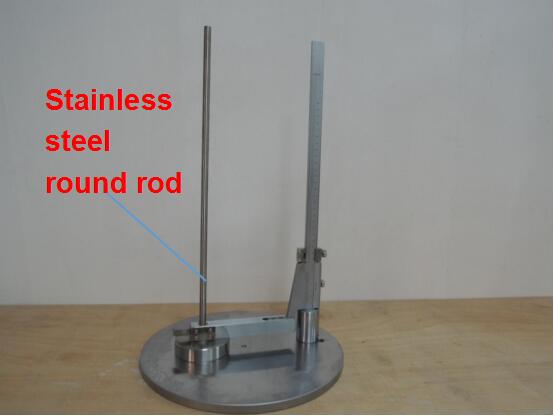

    2. Round bar, made of stainless steel.
    3. Price concessions
    4. Independent carton packaging.
    5. Stock



    Method of use and judgment result
    1. Place the toy at the weakest position on the surface of a horizontal steel plate;
    2. The metal block with a mass of 1±0.02kg and a diameter of 80±2mm is freely dropped from the height of 100±2mm onto the toy;
    3. Repeat again.
    4. Judgment: Punctuation, sharp edges, small objects or bursts are considered unqualified after the test.



    Please review video of the EN71 Impact Tester operation as below link:

    https://youtu.be/bck9AkU2DrI
