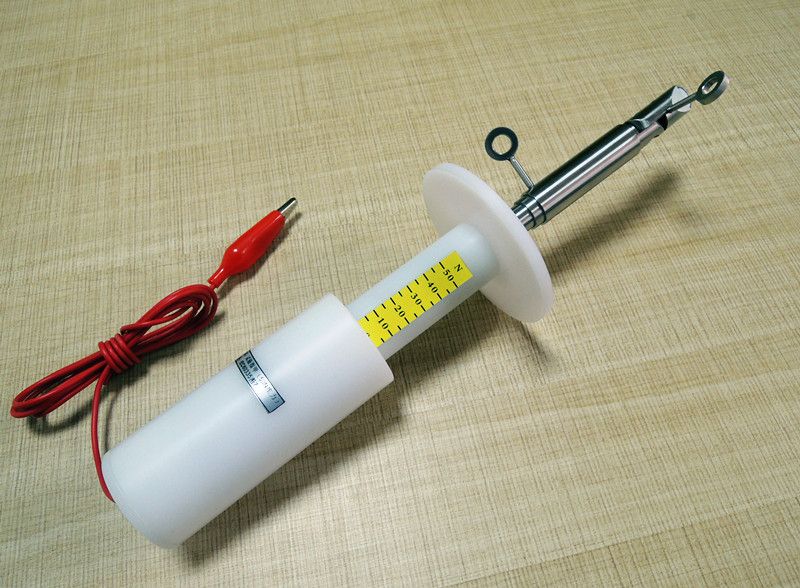

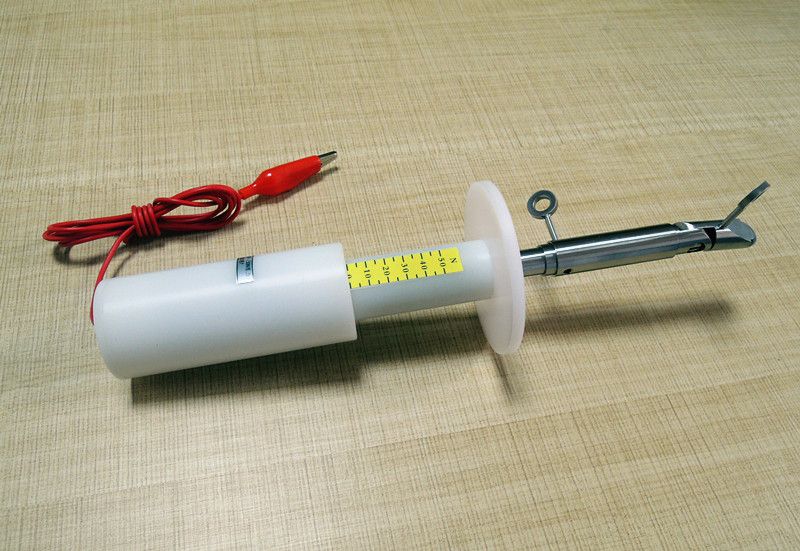

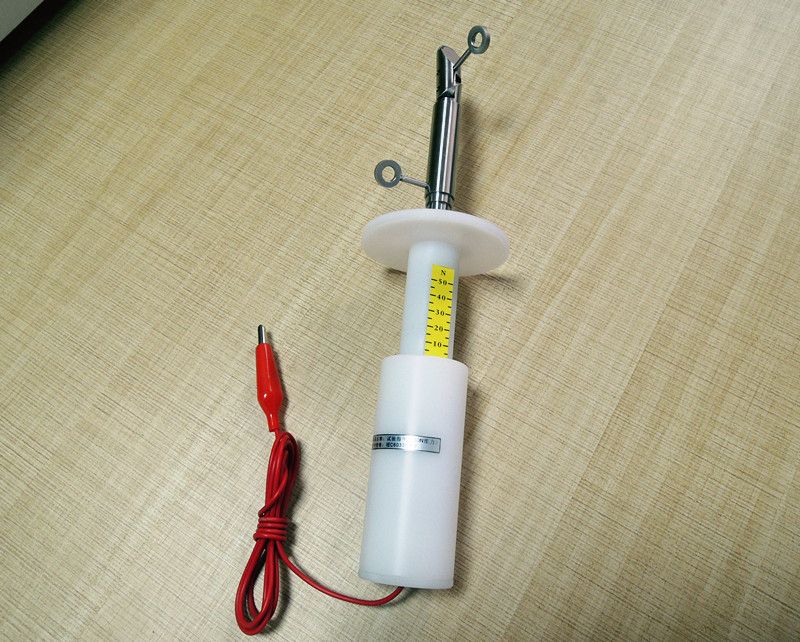

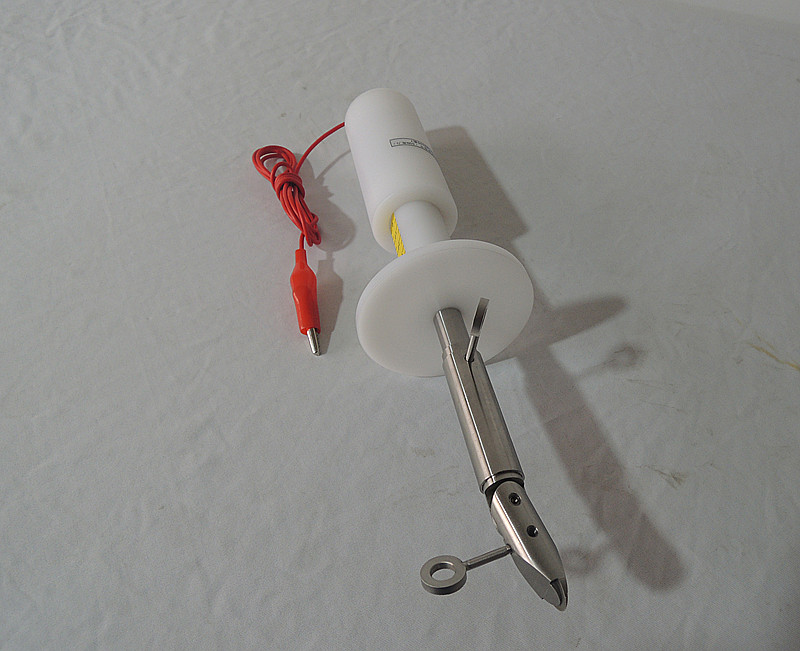

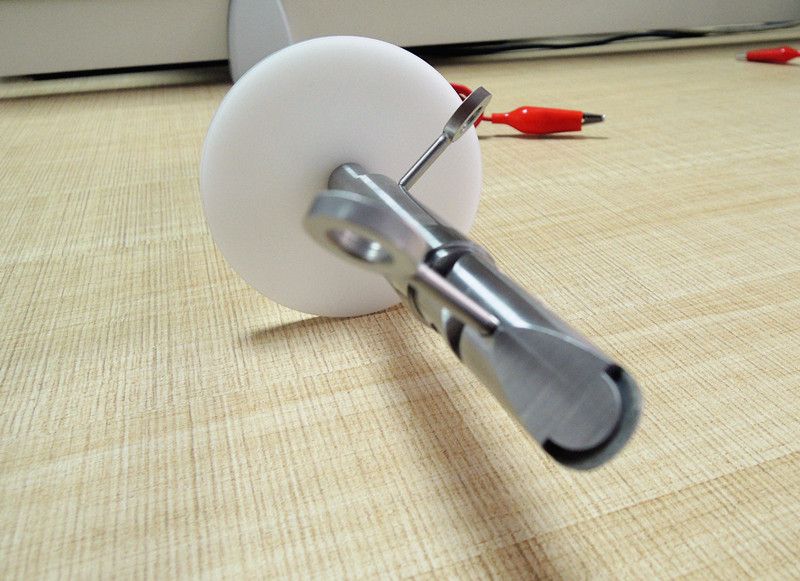

Figernail of IEC 60335-1:2010/Thrust Standard Test Nails

Product Introduction

It is mainly used for the penetration prevention of sharp parts of solid insulation, and for non-detachable parts to prevent contact with live parts, waterproof or contact with moving parts. It is fixed in a reliable manner and should withstand the mechanical stresses that occur in normal use buckles.

Standard

According to IEC60335-1 standard.

Technical parameters of standard test nails
1. Components: fingertips, middle finger, and three parts
2. Apply pressure: 10N, 20N, 30N
3. Reference standard: GB4706.1-2005 Figure 7, IEC60335-1 Figure 7


Standard test nail use method
1 The force of the surface pressure of the scratch test is 10 N, and the material of the scratched surface cannot be separated.
2.1 Use the test finger to insert any gap or joint, apply a 10N side tension vertically, but do not twist and sway, the relevant parts can not fall off or damage.
2.2 Insert any gap or joint with the test finger and apply a 10N side tension in the direction of component disassembly, but do not twist and sway, and the relevant parts cannot fall off or be damaged.


Standard Test Nail Precautions

This product is a precision stainless steel instrument tool. Use it with care and care. Do not use torsion to prevent damage to the nails and to prevent damage to the product during use.
