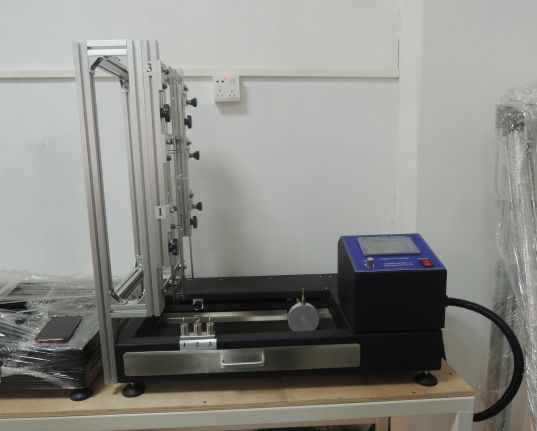

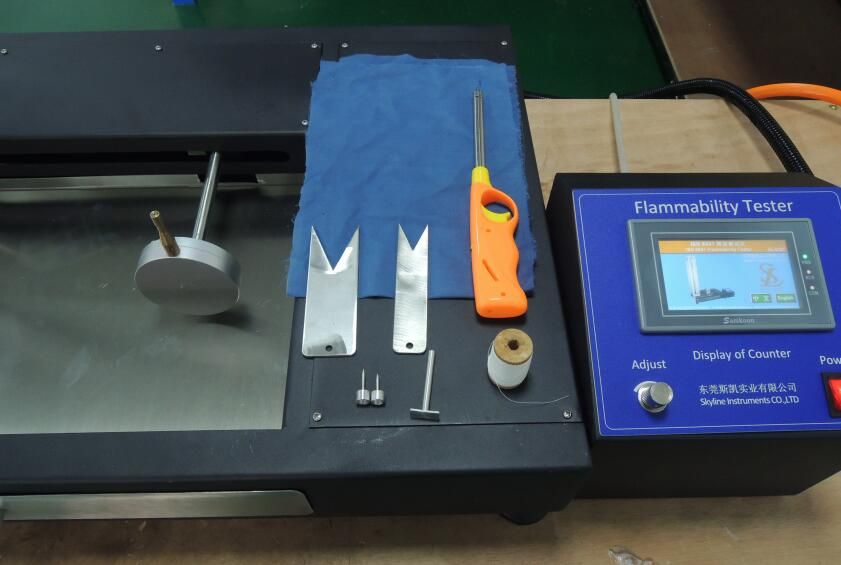

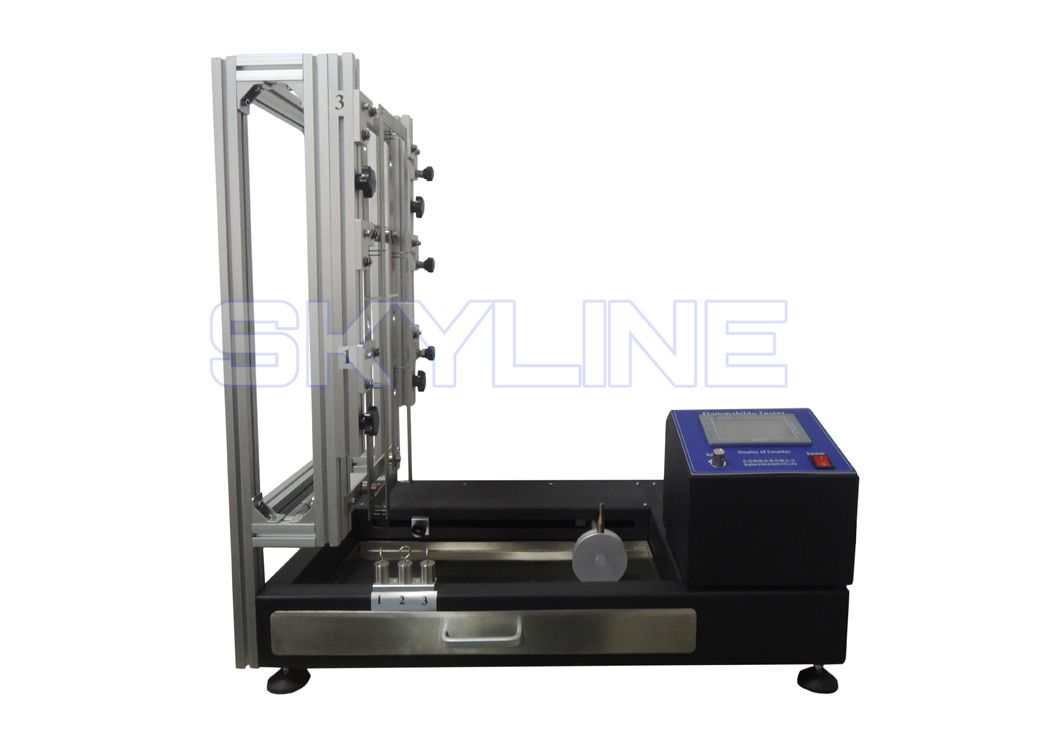

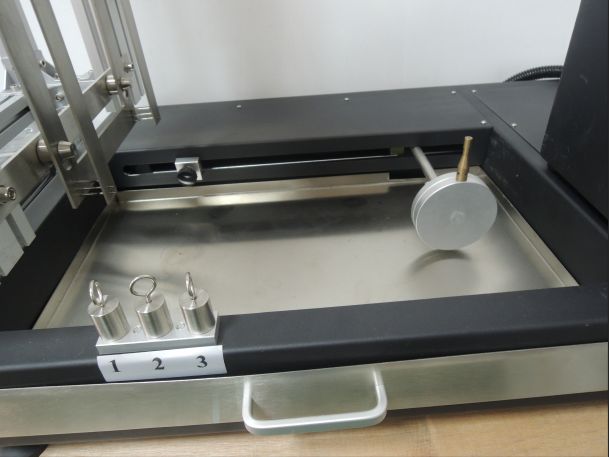

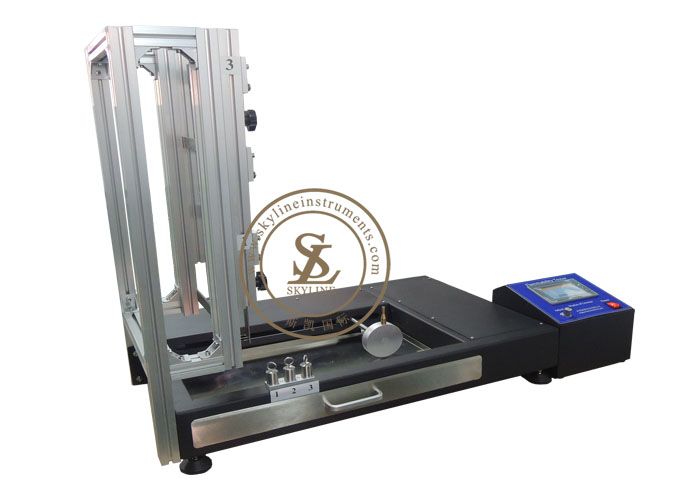

  • SL-S18T BS EN ISO 6940 Textile Vertical Flammability Tester

    SL-S18T BS EN ISO 6940 Textile Vertical Flammability Tester

    SL-S18T BS EN ISO 6940 Textile Vertical Flammability Tester

    SL-S18T BS EN ISO 6940 Textile Vertical Flammability Tester

    SL-S18T BS EN ISO 6940 Textile Vertical Flammability Tester

  • detailed description
  • ISO 6940 Fabrics Vertical Flammability Testing Equipment


    Product Introduction

    Vertical Flammability Tester , to determine the flammability resistance of vertical oriented fabrics, and 45°inclined fabrics material for toys, other material to making toys and soft-filling toy.



    The gas is controlled by a solenoid valve, ignition time is digitally set and test result is displayed on large LCD. The improved marker threads mounting devices ensure easy and fast installation, with accurate burner and micro switch operated trip threads. 3 optical scanning devices are used to detect the severance of threads to offer accurate and reliable timing.


    Description
    ISO6940 Textile Fabrics Vertical Burning Tester is used for testing the textile fabrics burining behaviour.Measurement of flame spread properties of vertically oriented specimens.
    It is also applicable to all kinds of textile material of flammability test;



    Technical parameters

    Marker Threads 45 tex to 50 tex

     The ignition time setting range  0 ~ 99.99 s
     The combustion timing range  0 ~ 999.9 s
     Fire mouth Angle: with the horizontal Angle  0 ° / 30 °, 90 ° can be adjusted
     The test flame height  25 mm / 40 mm
     Specimen holders  12 pcs
     Combustion gas  commercial grade propane or butane or butane/propane mixtures
     Volume (WxDxH)    80X55x66cm
     Weight (about)   45 kg
     Power Supply  1∮ AC 220V 50Hz

    Test Standards

     BS EN ISO 6940,EN ISO 6941


    NOTE:This Flammability Tester is in stock.


    How fabrics are tested for flammability?

    1 . The visual timing test : A fabric strip is suspended vertically and then ignited from the bottom edge, then the rate of flame spread is determined . 2 . The 45 test : In which the time (t), for the flame to travel 5 inch over fabric sloping at 45 degree angle is measured in seconds


    What is vertical flammability test?

    A test specimen is positioned vertically above a controlled flame and exposed for a specified period of time. Following exposure, the flame source is removed. Measurements are made on the length of time that the specimen continues to flame and the time afterglow continues after the flame source has been removed.
