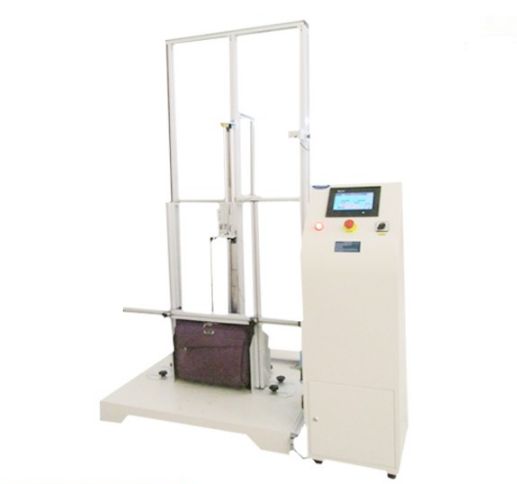

  • Luggage Trolley Handle Reciprocating Fatigue Tester

  • detailed description
  • Luggage Trolley Handle Reciprocating Fatigue Tester



    Product Introduction

    Luggage trolley handle reciprocating fatigue testing machine for luggage trolley reciprocating fatigue testing in the test specimen will be stretched, thereby resulting test rod gap, loose, connecting rod failure, deformation.



    Uses

    This machine is used for the luggage reciprocating fatigue test. The luggage will be stretched in the test, thereby to check resulting gap, loose, connecting rod failure, and deformation.



    Theory

    Luggage trolley handle reciprocating fatigue testing machine -- Under certain pulling and pressing frequency, To check the reciprocating fatigue performance of the pull rod, rod structure of fastness and durability of the switch through the luggage lever lock with a pull rod is continuously pulling switch, reciprocating and pressing.



    Specifications

     Test stroke  20~100cm adjustable
     Test position  4 point sensor location
     Tensile speed  0~30cm/sec adjustable
     Compression speed  0~30cm/sec adjustable
     Test times 1~999999
     Test dynamic  pneumatic cylinder
     Specimen height  highest 200cm
     Accessories  luggage seat clamped
     Working pressure  5~8 kg/cm²
     Dimention  120X120X210cm
     Weight  150kg
     Power  1φ,220V/50Hz
