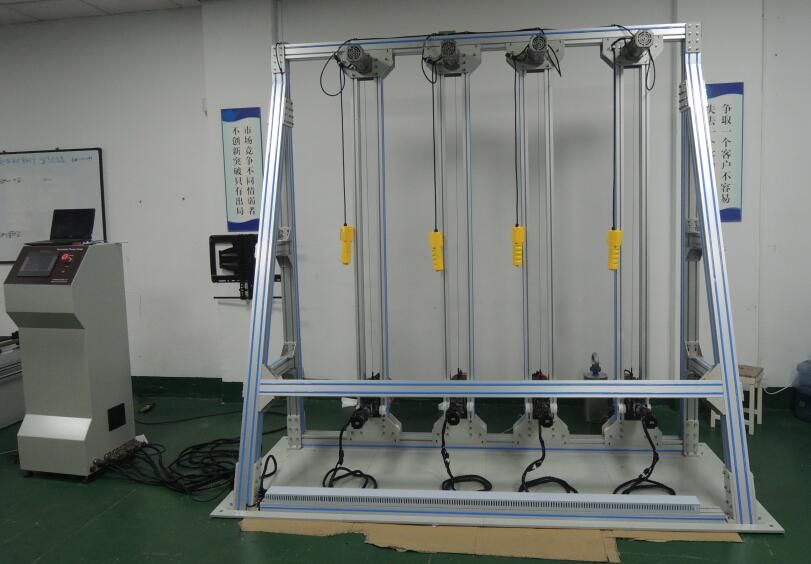

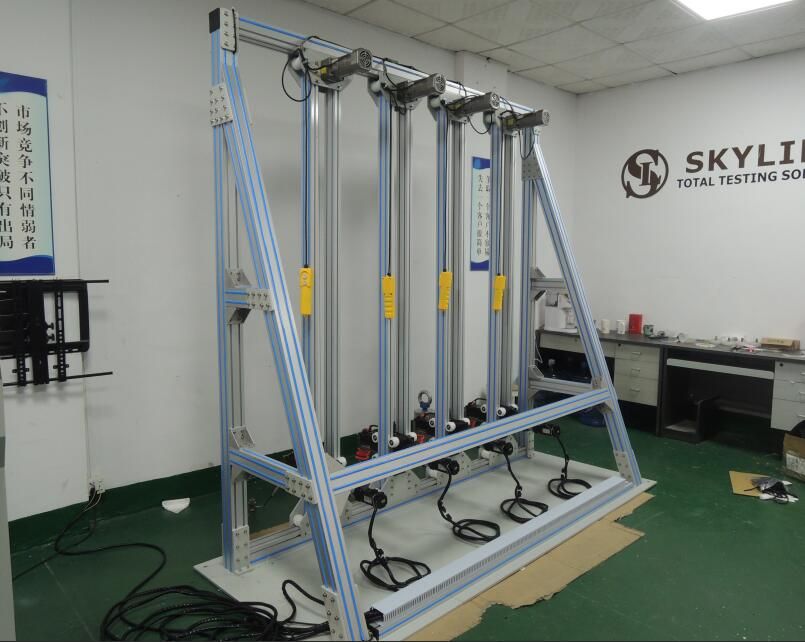

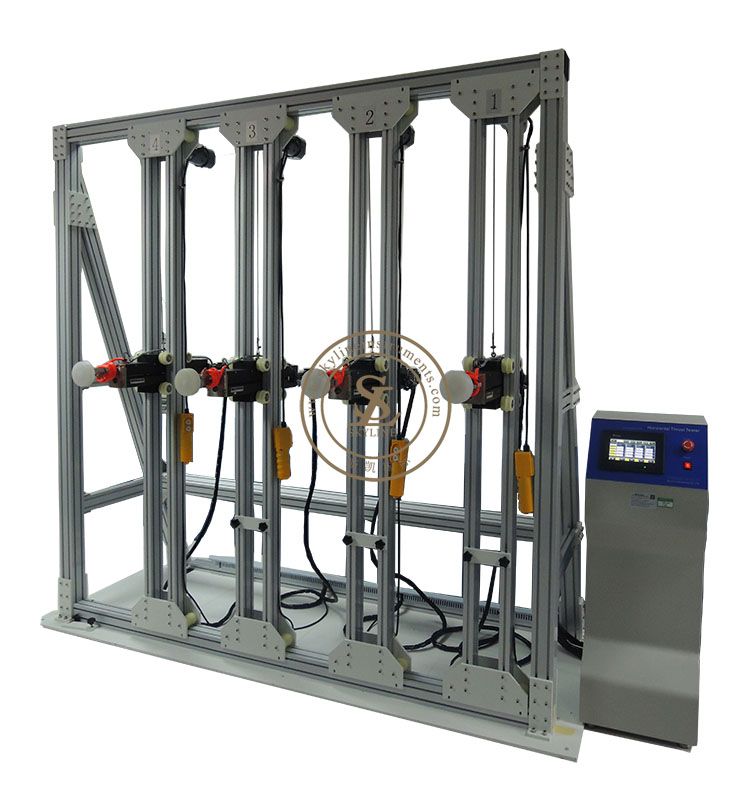

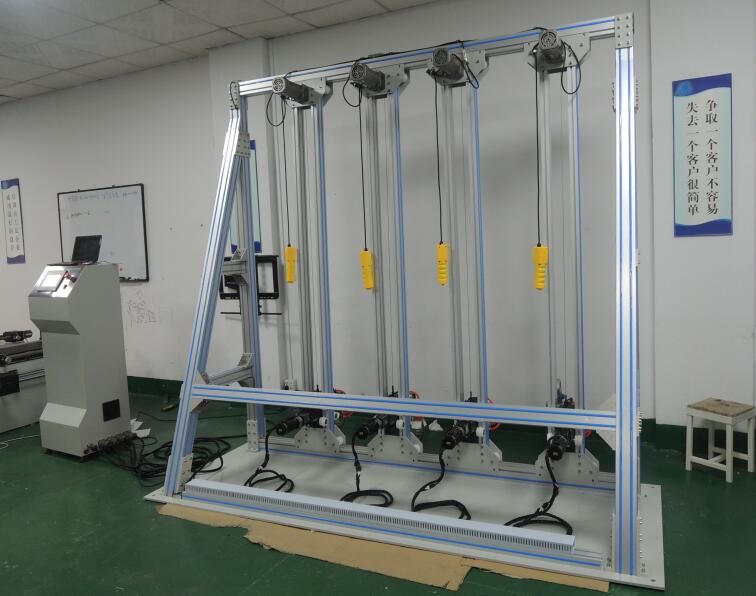

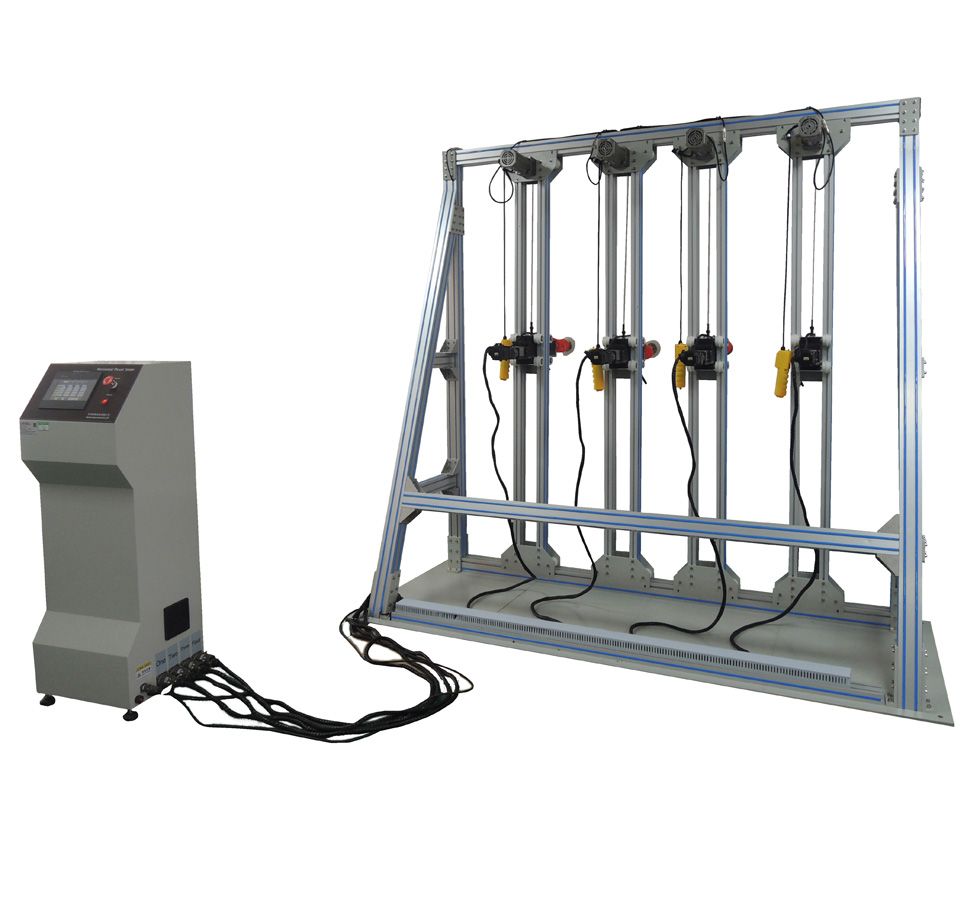

  • Swing Testing Equipment | Horizontal Thrust Tester

    Swing Testing Equipment | Horizontal Thrust Tester

    Swing Testing Equipment | Horizontal Thrust Tester

    Swing Testing Equipment | Horizontal Thrust Tester

    Swing Testing Equipment | Horizontal Thrust Tester

    Swing Testing Equipment | Horizontal Thrust Tester

  • detailed description
  • Swing Testing Equipment | Horizontal Thrust Tester


    Application

    A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect.


    Technical parameters

     Load cell capacity  0-2500N
     Accuracy  +/-0.5%
     Direction   Horizontal
     No of loading advice   4 in total
     Loading Point height   30-180cm

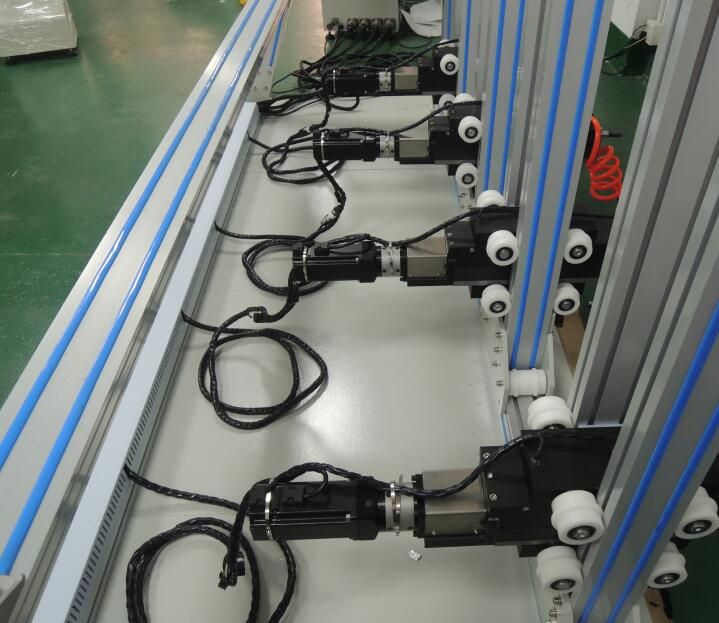

     Motor   4 servo actuators
     Controller   PLC+ Touch screen
     Test frame   Alu.material


    Standards

    ISO8124-4 6.1.2/ 6.1.4


    Procedure

    Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal
    surface.
    For a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not prevent the toy from overturning.
    Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with the anchors fixed to the standing surface in accordance with the manufacturer's instructions.
    On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the swinging direction.
    Where a swing element has multiple suspension points, distribute the load equally between the
    points (using Table 3 as a guide). Forces on multiple suspension points shall be applied in the same direction simultaneously.
    Observe whether the toy tips over
