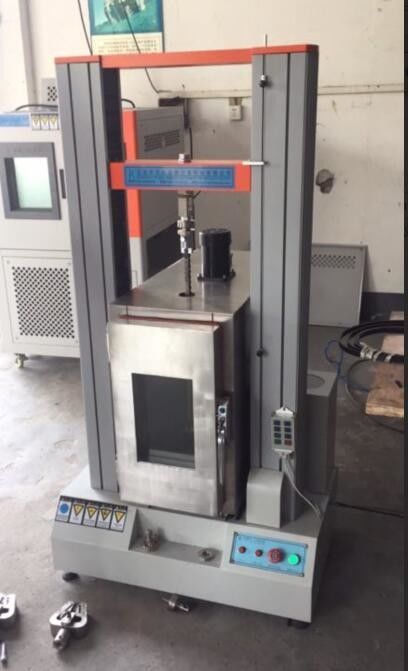

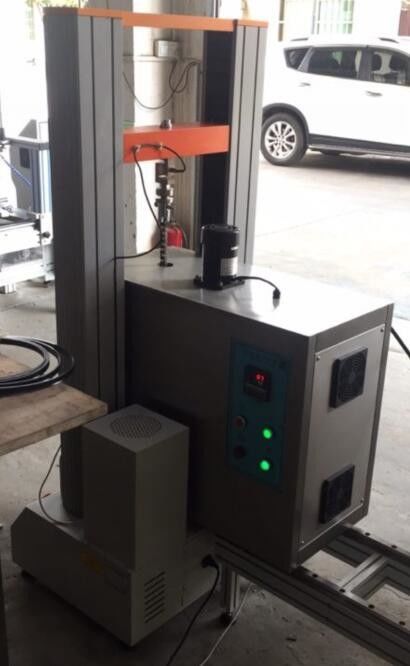

  • High Temperature Tensile Testing Machine

    High Temperature Tensile Testing Machine

  • detailed description
  • Tensile Strength Tester Servo HighTemperature Tensile Testing Machine



    Application

    This tester is mainly applied to rubber, plastic profile, plastic pipe, plate, sheet, film, wire and cable, waterproof coil, wire and other materials under high temperature or low temperature environment, stretching, compression, bending, peeling, Tear, shear and other mechanical properties of the test; very convenient for users to carry out research and development, quality control work, is the industrial and mining enterprises units, commodity inspection arbitration, scientific research units, universities, engineering quality and other departments ideal testing equipment.


    Features

    1.The instrument is composed of a main body of a pulling machine, a clamp, and a movable high-low temperature test box.

    2.Rally machine body part adopts a full set of imported digital AC servo system, high rigidity frame structure.

    3.High-low temperature test chamber adopts double-layer heat-insulating glass door, which is convenient for users to observe and test the situation.

    4.It adopts all-stainless steel frame and liner, which is not only beautiful but also has strong corrosion resistance.

    5.The instrument has a novel design, high precision, low noise, and easy operation.



    Specification

     Capacity selection  2,5,10,20,50,100,200,500,1000,2000kg
     Selecting capacity  Generally, the maximum strength of the specimen is about 3~10 times
     Unit selection  g, kg, N, KN, LB (provides international standard, metric, imperial three, can be used to switch)
     Display device  Full computer control (optionally generated report data required by customers)
     Decomposition degree of load  1/100,000
     Load accuracy  ≤0.5%
     Test speed  0.1~500mm/min (can be arbitrarily set in the computer)
     Test stroke  400, 500, 600mm (can be increased according to customer requirements)
     Test width  40cm (can be widened according to customer requirements)
     Machine test space  (L×W×H)40×40×70cm
     Machine weight  130KG
     Power System  Servo Motor + Drive
     Transmission mode  high precision ball screw
     Power supply  1∮, AC220V, 50~60Hz
     Fixture  According to customer's product requirements, make a set of tensile and compression test fixtures
     Machine size  host (L×W×H)1200×600×1500cm



    Low temperature refrigeration control system technical parameters
    Temperature control range: customized according to customer requirements, Min.-40°C~Max.150°C
    Control method: P.I.D. automatic temperature calculation
    Humidity range: 2%RH~98%RH
    Control stability: ±2.5%RH, ±1°C
    Distribution uniformity: ±3%RH, ±1°C
    Cooling Compressor: Single Stage Fully Enclosed French Taikang Original Compressor
    Cooling speed: >1°C/Min
    Timer: LED, 99 points from 0 to 9999
    Inner box material: SUS#304, mirror stainless steel plate
    Inner box size: (L×W×H)40×40×70cm (can be customized)
    Outer box material: sand grain stainless steel plate, tensile machine for aluminum shaped double column, advanced paint
    Insulation layer: high-density rigid PU styrofoam and 24K glass wool



    Safety devices
    Trip protection: mechanical, computer double protection, prevent over preset stroke
    Power protection: can be set by system
    Emergency stop device: can handle unexpected situations
    Temperature Overheat Preventer: Protects the test item and test box
    High-speed circuit protector: protection heating circuit
    Electric Motor (Blower, Freezer): Overload Thermal Relay (Protecting Blower, Freezer Overload)
    Refrigerant high pressure protection switch: protect the compressor and prolong its service life
    Circuit breaker protector: protect the compressor and prolong its service life
    Compressor overload protection switch, ultra-high temperature overload protection switch, water shortage protection device
