- Site：Home > Toys Safety Testing Equipment > Flammability Testing > SL-S19 45 Degree Automatic Flammability Test Apparatus
- Product Images
- detailed description

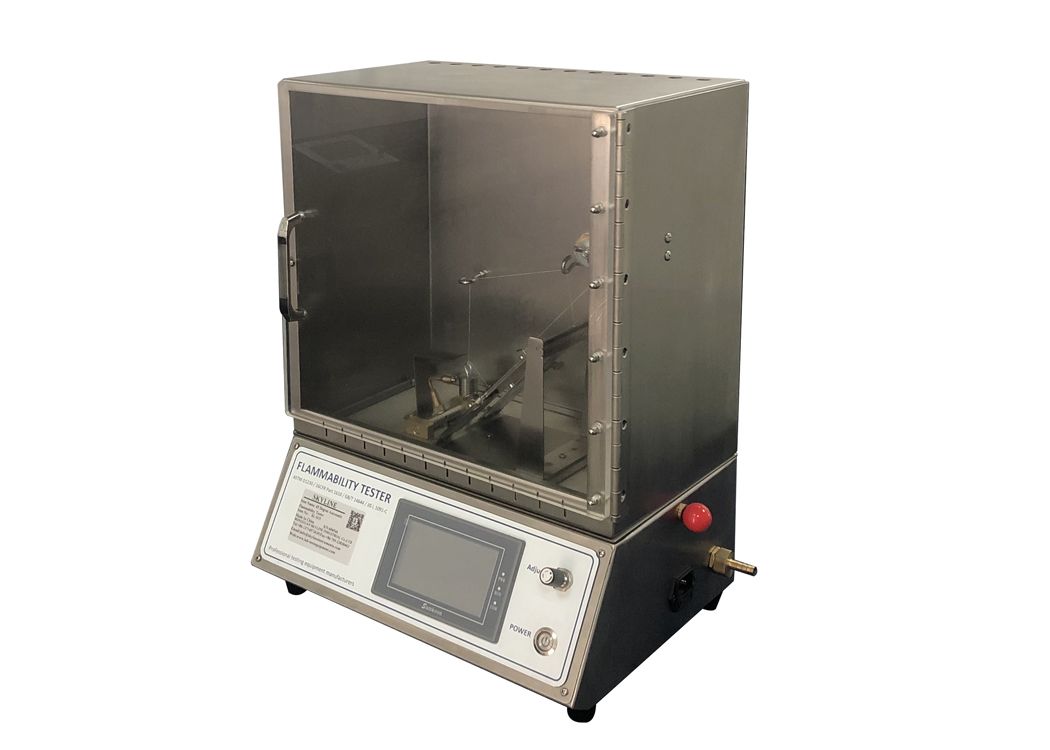

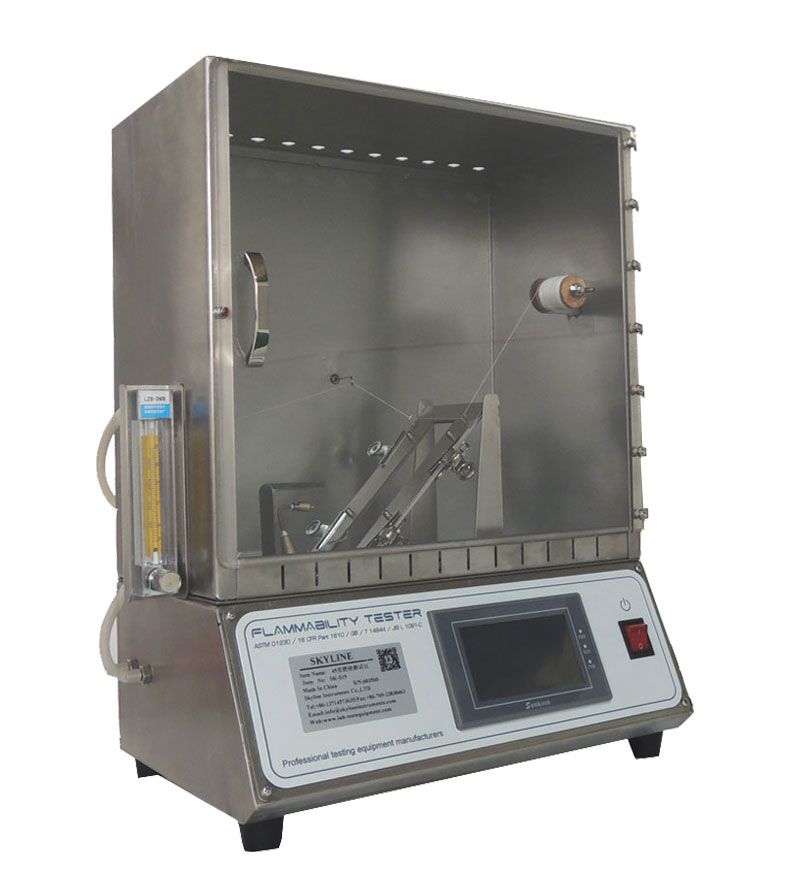

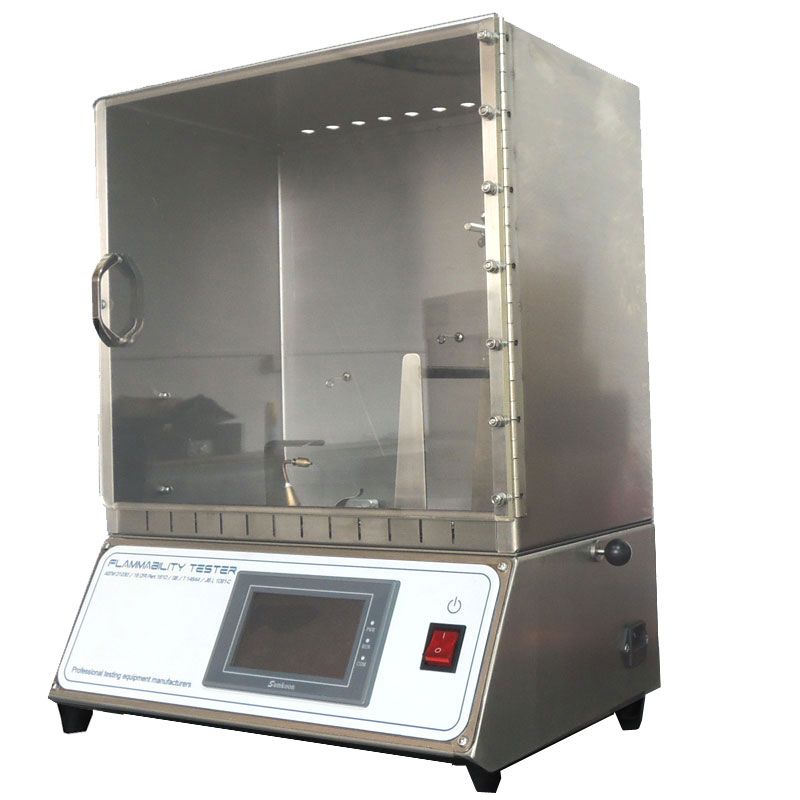

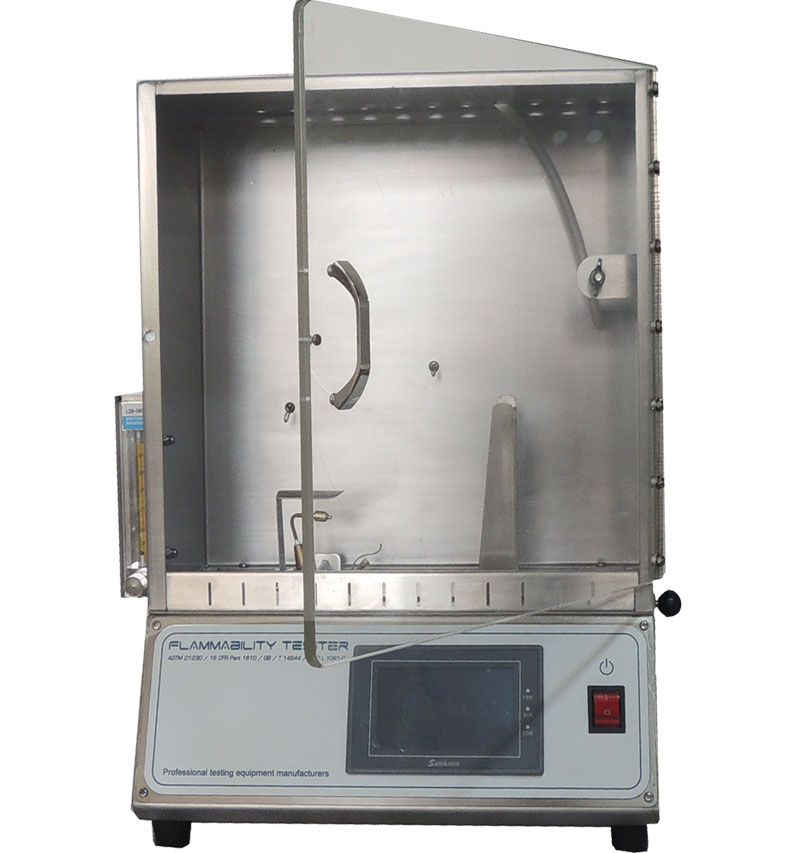

45 Degree Automatic Flammability Testing Equipment
Product information
45 degree flammability tester, check the flammable performance of the textile
Stainless testing room with glass window, after ignition automatic time (0.01 second precision) automatic.
Product Description
To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.
Manual firing device, included sample holder and bush.
Principle
Under the specified conditions, the sample is placed at an angle of 45°, the sample is ignited for 1 s, and the time required for the sample to burn upward by a certain distance is used as a measure for assessing the degree of burning of the textile. Fabrics with surface piles, the ignition or melting of the base fabric as an additional indicator of the severity of the combustion, but need to be noted.
Technical parameters
Time Display 0-99.9S Test box 37cm*22cm*35cm, top 12 vents with a diameter of 12.7mm Sample holder 45° Sample holder upper plate slotted 38mm*152mm Sample size 50mm*150mm Bristle load 150gf Resolving Capability 0.1S Ignition time 1s or set it Set arbitrary Dimensions 420 x 260 x 520mm (L*W*H) Power supply AC 220V / 50Hz / 2A Standards ASTM D1230, CRF 16-1610 Weight 20kg Please review video of the 45 Degree Automatic Flammability Tester operation as below link:
https://youtu.be/LkLZ_NMmh08

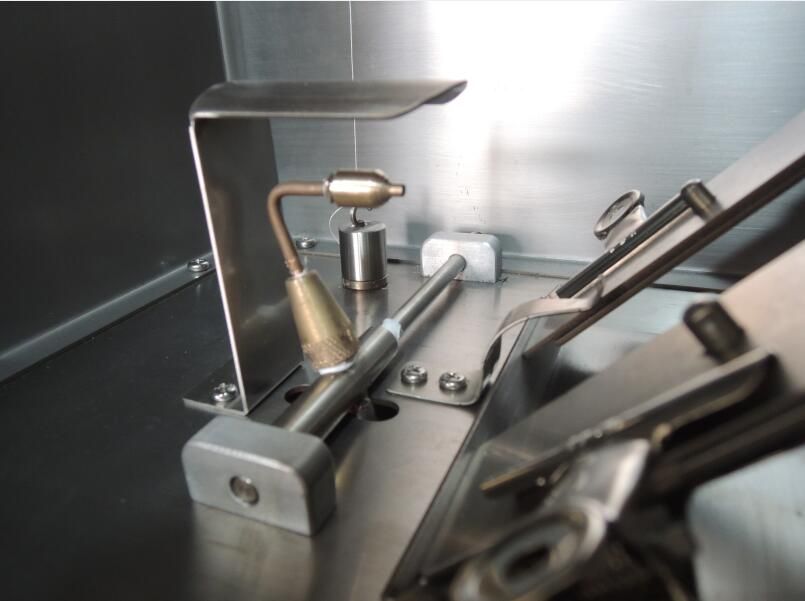

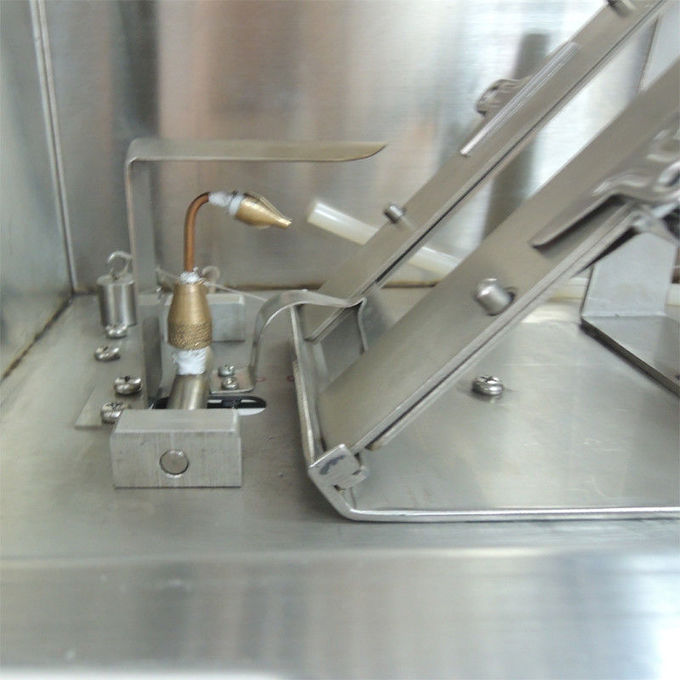

Burner

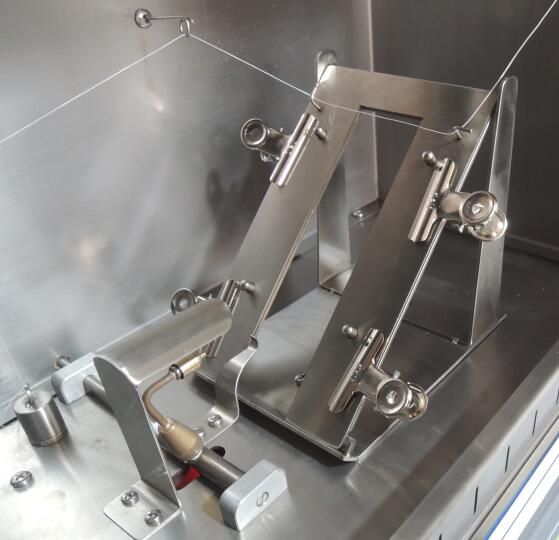

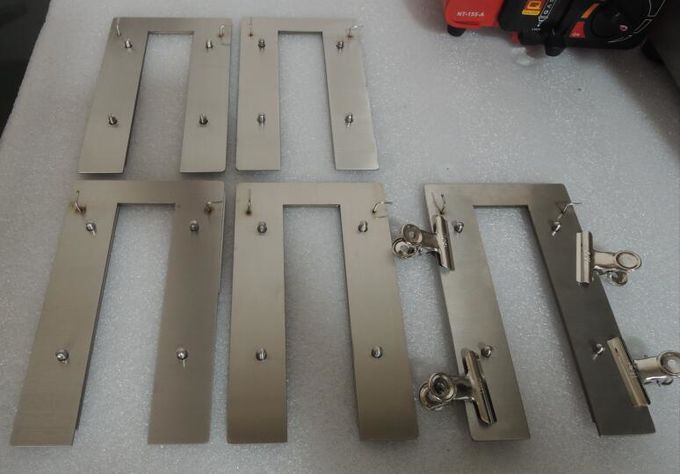

Fixture

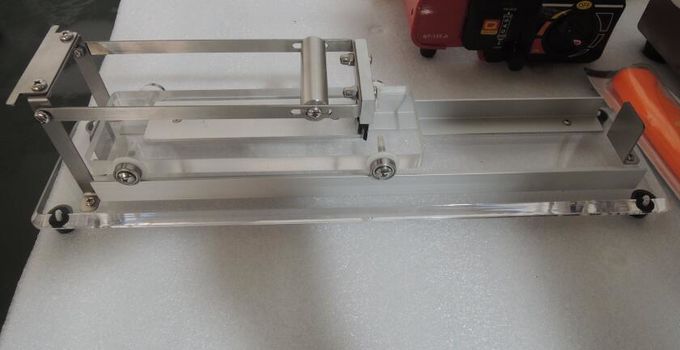

Brush
What is flammability test for fabrics?
Flammability testing determines how easily a material or finished product will ignite or burn when exposed to or used near fire or heat.
How do you test for plastic flammability?
The test involves applying a flame to one end of a horizontal bar of the plastic for 30 seconds or until the flame front reaches the specified mark. If burning continues then the time taken to reach the second mark is measured. If burning stops then the time of burning and the damaged length are measured.
